ZFIN ID: ZDB-FIG-160902-15
Robertson et al., 2016 - Identification of benzopyrone as a common structural feature in compounds with anti-inflammatory activity in a zebrafish phenotypic screen. Disease models & mechanisms   9(6):621-32 Full text @ Dis. Model. Mech.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Conditions:
Anatomical Term:
Stage: Protruding-mouth
PHENOTYPE:
Fish:
Conditions:
Observed In:
Stage: Protruding-mouth

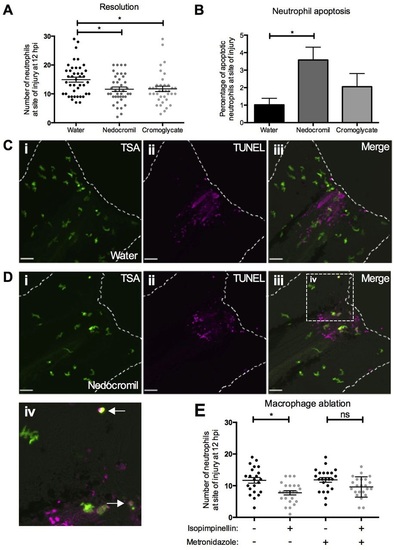

Fig. 6

Clinical cromones promote neutrophil apoptosis to drive inflammation resolution in vivo. (A) Inflammation-resolution assay in mpx:GFP larvae injected with 0.4pg/µl nedocromil or 0.5pg/µl disodium cromoglycate at 6hpi. Both compounds significantly reduce neutrophil numbers at the wound at 12hpi compared to the water control (one-way ANOVA with Dunnett′s multiple-comparison post-test; *P<0.5; n>36, performed as four independent experiments). (B-D) TUNEL assay in mpx:GFP larvae injected with water, 0.4pg/µl nedocromil or 0.5pg/µl disodium cromoglycate from 6hpi and fixed at 12hpi. Numbers of TSA-positive neutrophils and TSA/TUNEL double-positive apoptotic neutrophils at the site of injury were measured to calculate percentage neutrophil apoptosis, which was increased in nedocromil-treated larvae (one-way ANOVA with Dunnett′s multiple-comparison post-test; *P<0.05; n>54, performed as three independent experiments). (C,D) Illustrative images of water-injected (C) and nedocromil-injected (D) larvae following TSA/TUNEL staining (scale bars: 40µm). Broken lines indicate the outline of the tail-fin. White arrows in magnified view of boxed area in Diii (Div) indicate apoptotic neutrophils, identified by morphology and double TSA/TUNEL labelling. (E) Inflammation-resolution assay in the absence of macrophages. Metronidazole ablation of macrophages impairs the effect of isopimpinellin (one-way ANOVA with Bonferroni′s multiple-comparison post-test to compare selected columns; *P<0.05; ns, non-significant; n>20; performed as three independent experiments).

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
EGFP i114Tg transection: caudal fin Protruding-mouth neutrophil IFL
i114Tg transection: caudal fin, chemical treatment by injection: nedocromil Protruding-mouth neutrophil IFL
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
i114Tg transection: caudal fin Protruding-mouth regeneration epithelium neutrophil decreased amount, abnormal
i114Tg transection: caudal fin, chemical treatment by injection: nedocromil Protruding-mouth regeneration epithelium neutrophil decreased amount, abnormal
