FIGURE

Fig. 3

ID

ZDB-FIG-151001-21

Publication

Shimizu et al., 2015 - Radial glial cell-specific ablation in the adult zebrafish brain

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

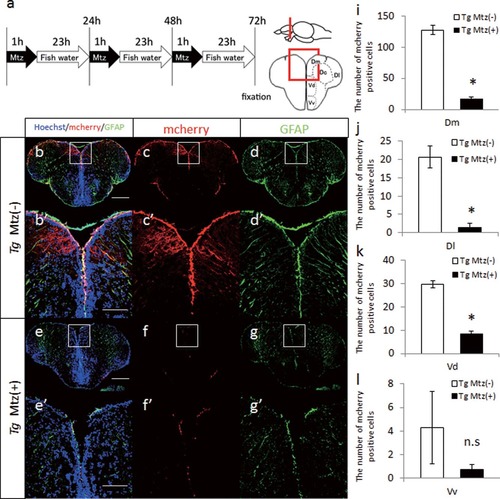

NTR-mediated RGC ablation in Tg(gfap:Gal4FF;UAS:nfsB-mcherry) adult zebrafish. a: Mtz treatment schedule for RGC-specific ablation. b–d: Expression of mcherry and GFAP in the telencephalon of adult Tg zebrafish after Mtz treatment. Sections of the telencephalon of Tg fish were stained with anti-GFAP (green) antibody. Nuclei were stained with Hoechst (blue). e–g: Expression of mcherry and GFAP in the telencephalon of adult Tg(gfap:Gal4FF;UAS:nfsB-mcherry) zebrafish. Sections of the telencephalon of Tg fish were stained with anti-GFAP (green) antibody. Nuclei were stained with Hoechst (blue). i–l: The number of mcherry-positive cells in the adult telencephalon with or without the Mtz treatment. Dm, Dl, and Vd. *P < 0.05. Scale bars, 200 µm in b and e, 100 µm in b′ and e′.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Genesis
