FIGURE

Fig. 3

ID

ZDB-FIG-150528-3

Publication

Liu et al., 2015 - DNA methyltransferase 1 functions through C/ebpa to maintain hematopoietic stem and progenitor cells in zebrafish

Other Figures

(all 11)

All Figure Page

Back to All Figure Page

Fig. 3

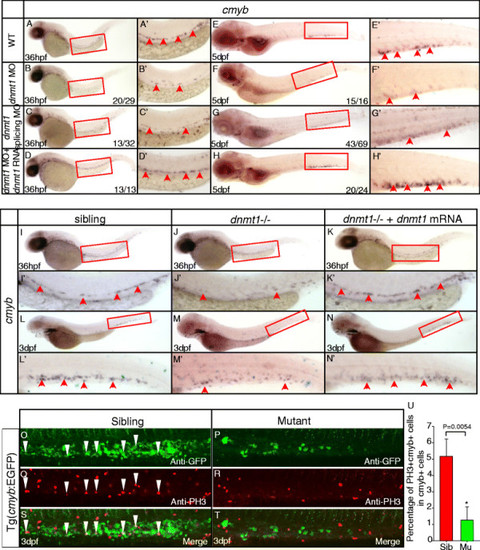

Dnmt1 mRNA rescue and anti-phosphorylated histone H3 (pH3) immunostaining assays in dnmt1-deficient embryos. (A-H) Dnmt1 mRNA rescue assay at 36 hpf (A-D) and 5 dpf (E-H). Dnmt1 ATG morpholino (4 ng) and splicing-specific morpholino (8 ng) effectively reproduced decreased cmyb expression phenotype in wild-type embryos (B, C, F, G). Dnmt1 mRNA rescued the defects of dnmt1 morphants. (I-N) Rescue assay of wild-type dnmt1 mRNA in ldd794 dnmt1 mutants at 36 hpf (I-K) and 3 dpf (L-N). Wild-type dnmt1 mRNA effectively restored cmyb expression in ldd794 dnmt1 mutants at 36 hpf (K) and 3 dpf (N). (A′-N′) Magnified images of the boxed regions in A to N, respectively. Red arrows indicate cmyb-positive HSPCs in the AGM or CHT. (O-T) The proliferation of HSPCs was reduced in dnmt1/ mutants. Double immunostaining of cmyb-EGFP (O-P) and anti-PH3 (Q-R) in the CHT of Tg(cmyb-EGFP) line at 72 hpf. The bottom panel shows merged images (S, T). (U) Statistics of PH3 and cmyb-EGFP double positive cells.

Expression Data

Genes:	EGFP myb
Fish:	TU WT dnmt1^rj794/rj794 (TU) WT + MO4-dnmt1 WT + MO7-dnmt1 zf169Tg dnmt1^rj794/rj794; zf169Tg (all 7)
Knockdown Reagents:	MO4-dnmt1 MO7-dnmt1
Anatomical Terms:	caudal hematopoietic tissue hematopoietic stem cell
Stage Range:	Prim-25 to Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	dnmt1^rj794/rj794 (TU) WT + MO4-dnmt1 WT + MO7-dnmt1 dnmt1^rj794/rj794; zf169Tg
Knockdown Reagents:	MO4-dnmt1 MO7-dnmt1
Observed In:	caudal hematopoietic tissue definitive hemopoiesis hematopoietic stem cell
Stage Range:	Prim-25 to Day 5

Phenotype Detail
