Fig. 7

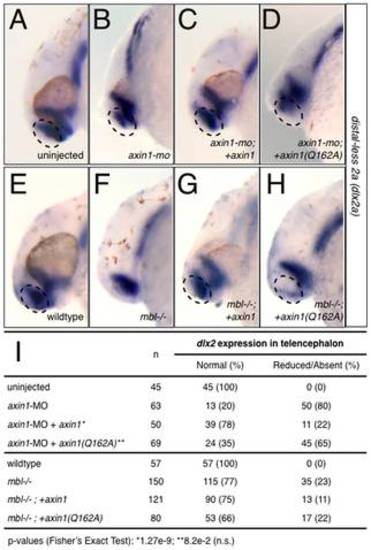

axin1 but not axin1(Q162A) rescues telencephalic defects in Axin1-depleted and in mbl-/- embryos. (A–H) Representative examples of dlx2 expression in control and Axin1-depleted zebrafish embryos (A–D) and in wildtype and mbl-/- embryos (E–H). (A) control uninjected embryo at 24 hpf, (B) axin1-MO-injected, (C) axin1-MO+xx axin1, (D) axin1-MO+axin1(Q162A), (E) wildtype embryo at 24 hpf, (F) mbl-/-, (G) mbl-/-;+axin1 (H) mbl-/-;+axin1(Q162A). (I) Summary of dlx2 expression data. Arrows indicate areas of reduced or absent dlx2 in the telencephalon. |
Expression Data
| Gene: | |
|---|---|
| Fish: | |
| Knockdown Reagent: | |
| Anatomical Terms: | |
| Stage Range: | 20-25 somites to Prim-5 |
Expression Detail
Antibody Labeling
Phenotype Data
| Fish: | |
|---|---|
| Knockdown Reagent: | |
| Observed In: | |
| Stage Range: | 20-25 somites to Prim-5 |
