Fig. 1

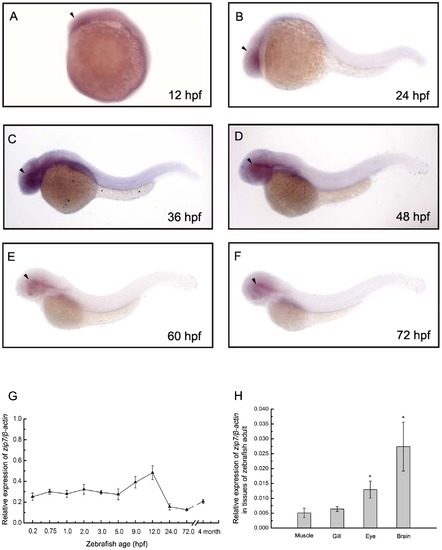

Zip7 expression during zebrafish early embryonic development in wild type embryos and in tissues of adult zebrafish.

(A–F) Lateral views (anterior to the left) of WISH of zip7 expression at 12 hpf, 24 hpf, 36 hpf, 48 hpf, 60 hpf, 72 hpf, embryos. Arrows indicate the eye. (G) The zip7 mRNA expression pattern assayed by qRT-PCR normalized to β-actin transcripts in zebrafish embryos across development and at the adult stage. (H) Normalized zip7 mRNA expression levels in tissues of zebrafish adult. * P<0.05 versus muscle (1-way ANOVA, Dunnett′s multiple comparison test).
Expression Data
Gene:
Fish:
Anatomical Terms: (all 8)
Stage Range: 1-cell to Adult

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
