Fig. 1

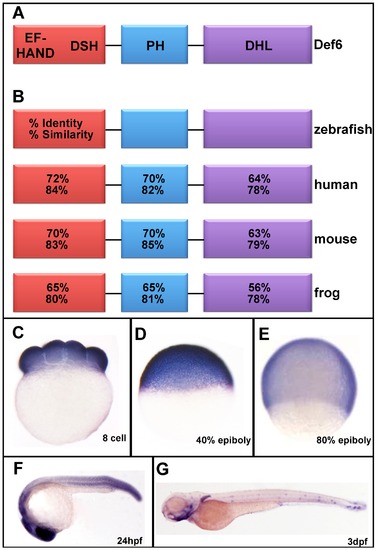

Zebrafish def6 is dynamically expressed during development.

(A) Schematic representation of the def6 protein domain arrangement consisting of an N-terminal putative Ca2+-binding EF-hand domain followed by a def6/swap-70 homology (DSH), a pleckstrin-homology (PH) domain and a C-terminal Dbl-homology-like (DHL) domain. (B) Sequence identity and similarity of the various def6 domains between different species as indicated. (C-E) Def6 is ubiquitously expressed at the (C) 8-cell stage, (D) 40% epiboly and (E) 80% epiboly stages. (F) At 24hpf, def6 transcripts are found in the developing brain, somite boundaries and tail. (G) The expression pattern of def6 becomes more restricted at 3dpf where mRNA can be detected in the pharyngeal arches, medial and pectorial fins and anterior and posterior neuromasts of the lateral line.

Expression Data
Gene:
Fish:
Anatomical Terms:
Stage Range: 8-cell to Protruding-mouth
