Fig. S3

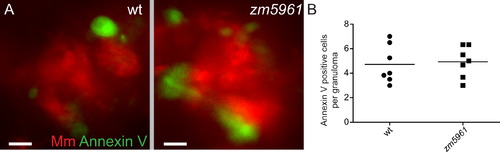

Mutation of lta4h Does Not Affect Annexin V Staining During Infection, Related to Figure 4 (A) Wild-type (left) and zm5961 (right) granulomas after Annexin V staining (green). Bacteria are red. Staining was performed 4 dpi after infection with 250–300 CFU M. marinum. Scale bars, 5 μm. (B) Quantitation of Annexin V positive cells per granuloma in wild-type and zm5961 animals (n = 7 animals for each class, total number of granulomas analyzed: 21 for wild-type, 25 for zm5961). No significant difference by Student′s unpaired t test. |
Expression Data
Expression Detail
Antibody Labeling
Phenotype Data
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Cell, 140(5), Tobin, D.M., Vary, J.C. Jr, Ray, J.P., Walsh, G.S., Dunstan, S.J., Bang, N.D., Hagge, D.A., Khadge, S., King, M.C., Hawn, T.R., Moens, C.B., and Ramakrishnan, L., The lta4h Locus Modulates Susceptibility to Mycobacterial Infection in Zebrafish and Humans, 717-730, Copyright (2010) with permission from Elsevier. Full text @ Cell
