Fig. 6

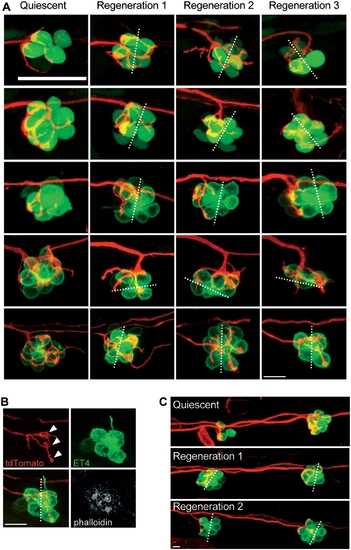

Afferent neurons reinnervate the hair cells of the same polarity after several cycles of ablation and regeneration.
