Fig. 8

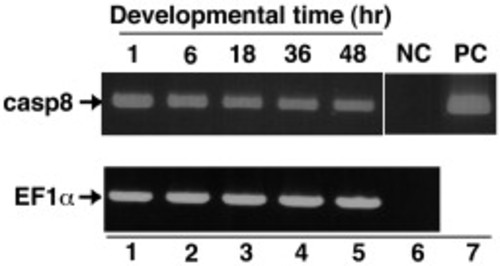

The expression profile of caspase-8 during embryonic development. RT-PCR analysis of caspase-8 transcripts was performed with total RNA isolated from embryos collected at 1, 6, 18, 36 and 48 h after fertilization (lanes 1-5). Aliquots of the synthesized first-strand cDNAs were amplified with primers for casp8 (Upper) or EF1α as a control (Bottom) and analyzed by agarose-gel electrophoresis. No template DNA and zebrafish casp8 cDNA samples as negative and positive controls were examined in the lanes 6 and 7, respectively.

Expression Data
Gene:
Fish:
Anatomical Term:
Stage Range: 4-cell to Long-pec

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene, 396(1), Sakata, S.I., Yan, Y., Satou, Y., Momoi, A., Ngo-Hazelett, P., Nozaki, M., Furutani-Seiki, M., Postlethwait, J.H., Yonehara, S., and Sakamaki, K., Conserved function of caspase-8 in apoptosis during bony fish evolution, 134-148, Copyright (2007) with permission from Elsevier. Full text @ Gene
