Figure Caption

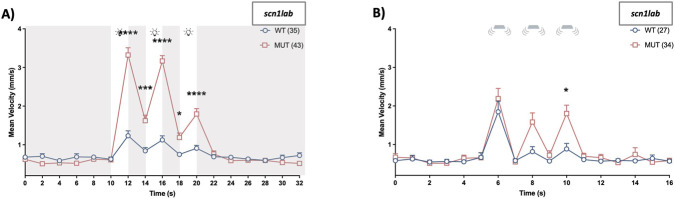

FIGURE 4
Heightened startle response persists to 7 dpf in scn1lab mutants. Scn1lab+/− breeders were crossed and on day 7, clutches were exposed to the (A) light and (B) tap startle assay. Startle responses were quantified via mean velocity (mm/s). Data are shown as mean ± SEM. Post hoc Sidak’s multiple comparison test *p < 0.05, ***p < 0.001 and ****p < 0.0001.
