Figure S6.
- ID
- ZDB-IMAGE-260509-22
- Publication
- Gillotay et al., 2026 - The role of Nrf2 in thyroid maturation and hormone synthesis in vertebrate models
- All Figures
- Figures for Gillotay et al., 2026
|
Figure S6.

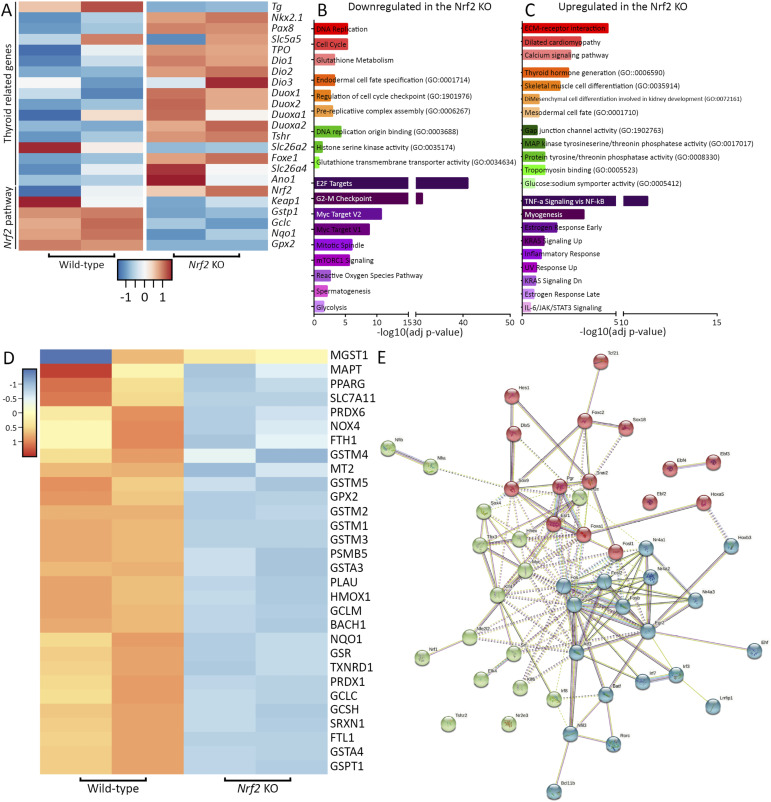

Transcriptomic profiling of Nrf2 KO–derived thyroid organoids.
