Fig. 5

ID: ZDB-IMAGE-250430-15
Publication: Fragale et al., 2025 - Loss of Atoh8 Affects Neurocranial and Axial Skeleton Development in Zebrafish
All Figures: Figures for Fragale et al., 2025


Figure Caption

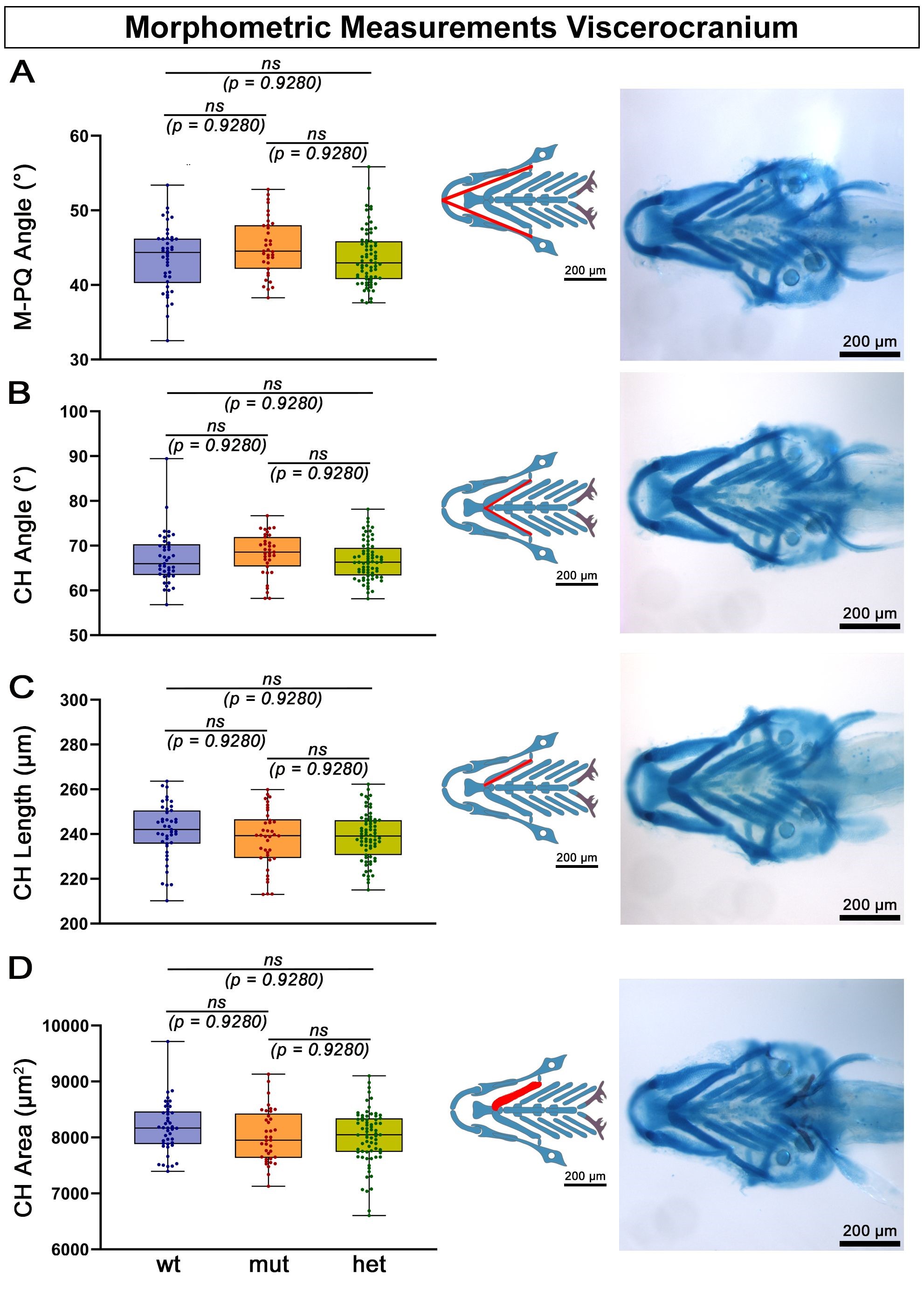

Fig. 5 Meckel’s-palatoquadrate (M-PQ) angle and ceratohyal (CH) angle, length and area. (A–D) No statistically significant differences (ns) were detected in any of the measured viscerocranial structures. Ventral views of whole Alcian Blue stained zebrafish larval heads (eyes removed), anterior to the left. Abbreviations: ns, not significant; wt, wildtype; mut, homozygous mutant; het, heterozygous mutant. Scale bars: 200 µm.
