Figure 3

ID

ZDB-IMAGE-240331-6

Genes

gas5

Publication

Zhou et al., 2024 - Systematic Identification of Long Noncoding RNAs during Three Key Organogenesis Stages in Zebrafish

All Figures

Figures for Zhou et al., 2024


Figure Caption

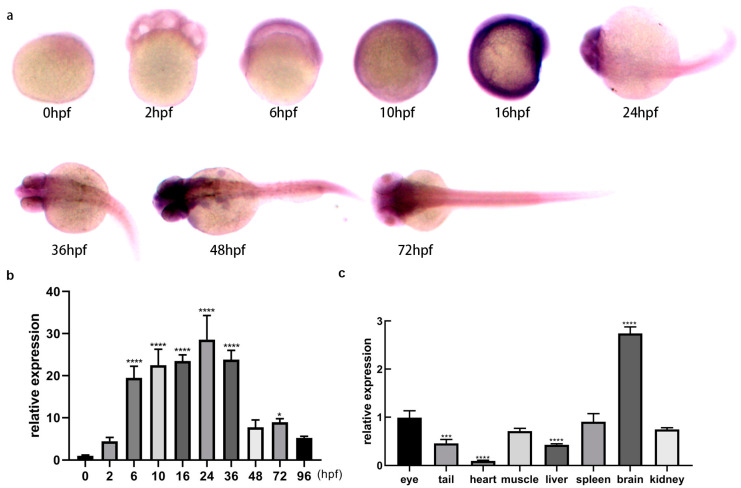

Figure 3

Spatiotemporal expression of lncRNA gas5 in zebrafish. (a) Spatial expression at different developmental stages of zebrafish embryos using in situ hybridization. Microscope’s magnification: 45 ×. (b) Expression at different developmental stages, analyzed using qPCR. The expression level of 0 hpf was set as 1, and the relative expression levels of other stages were compared with that of 0 hpf. (c) Expression profiles in various tissues of adult zebrafish, detected using qPCR. The expression level of the eyes was set as 1, and the relative expression levels of other tissues were compared with that of the eyes. Data of qPCR derived from three independent experiments are shown as mean ± SEM. * indicates p < 0.05, *** indicates p < 0.001, **** indicates p < 0.0001.

Figure Data

Expression / Labeling details
