Figure 9.

ID
ZDB-IMAGE-230916-179
Publication
Sahai-Hernandez et al., 2023 - Dermomyotome-derived endothelial cells migrate to the dorsal aorta to support hematopoietic stem cell emergence
All Figures
Figures for Sahai-Hernandez et al., 2023
Figure Caption

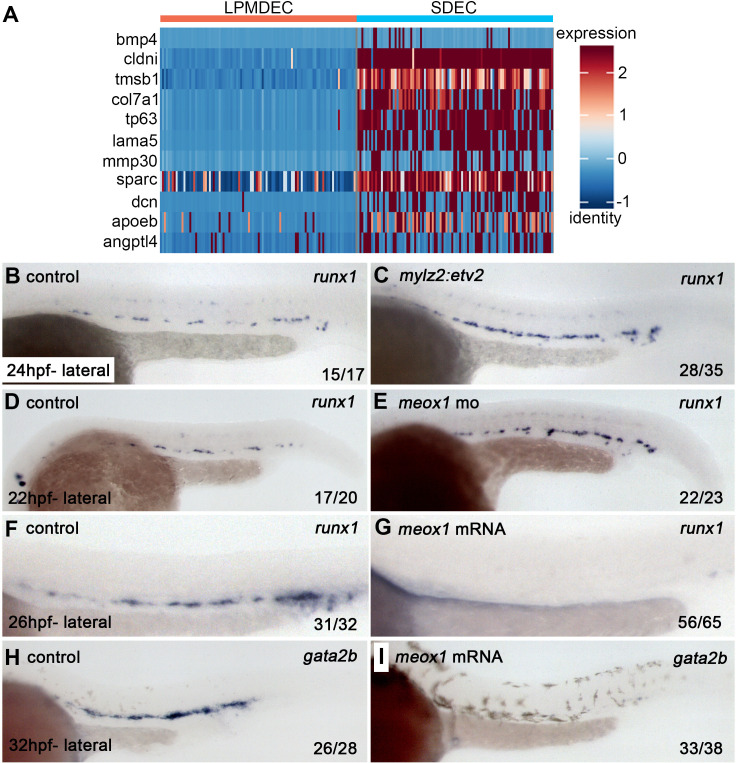

Figure 9. SDECs act as a vascular niche for hemogenic endothelium.

(A) Heatmap of genes differentially regulated between LPM-derived endothelial cells (LPMDEC sample is composed of pre-HSCs and HE clusters) and SDECs. (B,C) Zebrafish embryos were injected with an expression vector containing a somite-specific promoter, mylz2, driving an etv2 transgene to ectopically induced SDECs. By WISH, an increase in runx1 expression was observed at 24 hpf compared to embryos injected with an empty mylz2 vector. (D,E) Similarly, meox1 morphants exhibit an increased expression of runx1 by WISH compared to uninjected control embryos. (F–I) Conversely, overexpression of meox1 by mRNA injection strongly reduces the hemogenic markers runx1 and gata2b. SDECs, somite-derived endothelial cells.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Elife
