Fig. 5

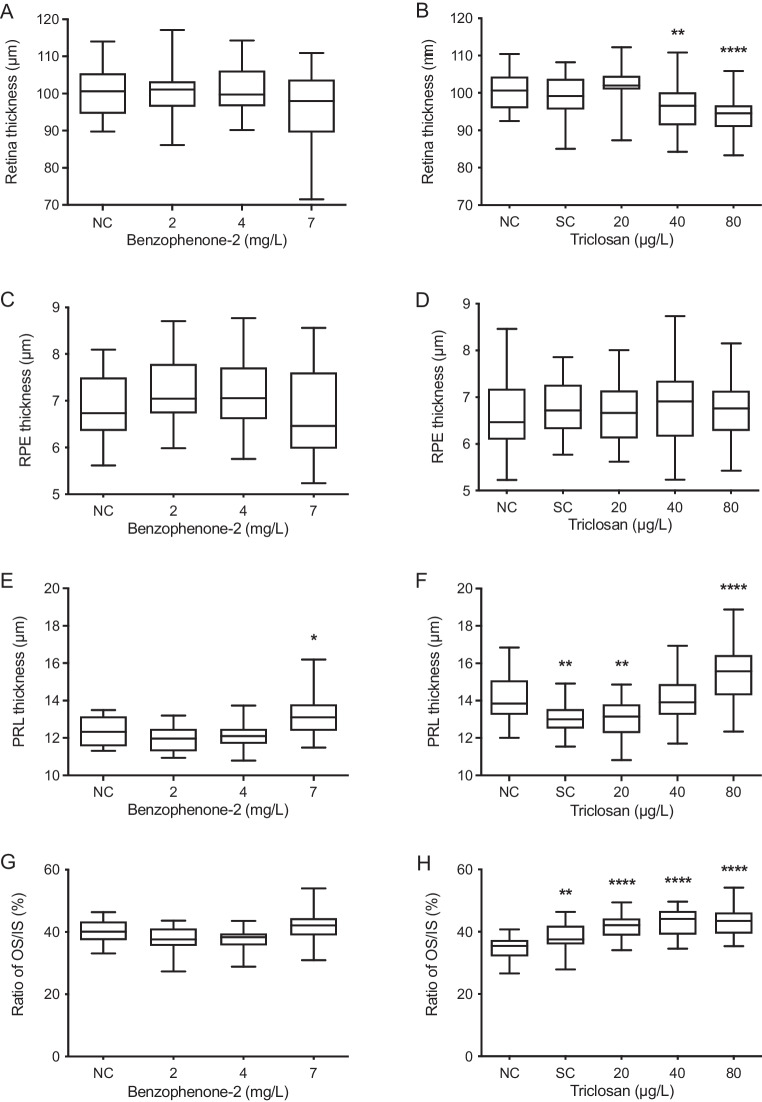

Quantitative changes in the morphology of various layers in the retina of eyes of 5 days old zebrafish (Danio rerio) embryos after exposure to benzophenone-2 (BP-2) or triclosan (TCS). A, B Thickness of the retina. C, D Thickness of the retinal pigment epithelium (RPE). E, F Thickness of the photoreceptor layer (PRL). G, H OS/IS ratios. BP-2: n = 21–33; TCS: n = 30–36. The central line displays the median and the whiskers are showing the standard deviation. Asterisks indicate statistically significant differences of the exposure groups to the negative control (NC) group. *p < 0.05, ****p < 0.0001. SC = solvent control
