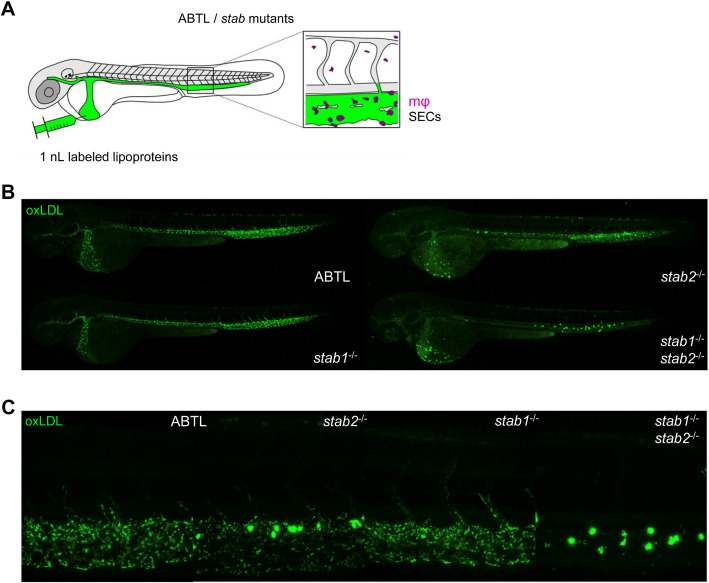

Fig. 1. Absence of scavenger receptors stab1 and/or stab2 reduces oxLDL uptake by endothelial cells.

(A) Schematics of experimental set-up; injection of fluorescent labeled lipoproteins in 3 dpf ABTL or stabilin knockout zebrafish larvae. (B) Photomicrographs showing an overview of 3 dpf ABTL, stab1^−/−, stab2^−/−, and stab1^−/−stab2^−/− zebrafish larvae after injection of oxLDL (0.5 mg/mL; green). (C) Uptake of oxLDL (0.5 mg/mL; green) in the caudal vein of 3dpf ABTL, stab1^−/−, stab2^−/− and stab1^−/−stab2^−/− zebrafish larvae. (For interpretation of the references to color in this figure legend, the reader is referred to the Web version of this article.)
