Fig. 1

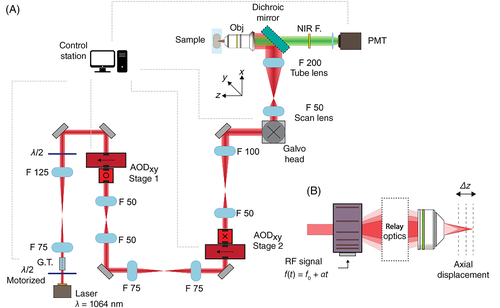

Schematic of the AOD-based scanning head. A, Optical setup with hybrid galvo-AOD scanning head implemented for 2P excitation. B, Optical diagram of the AOL focusing performance and the induced axial displacement with respect to the inherent objective focal plane. 2P, Two-photon; AOD, acousto-optic deflector; AOL, acousto-optic lens; F, focal length; G.T., Glan-Taylor polarizer; NIR F, near-infrared filter; RF, radio frequency
