ZFIN Image: Scaramella et al., 2022, Figure 6.


Figure Caption

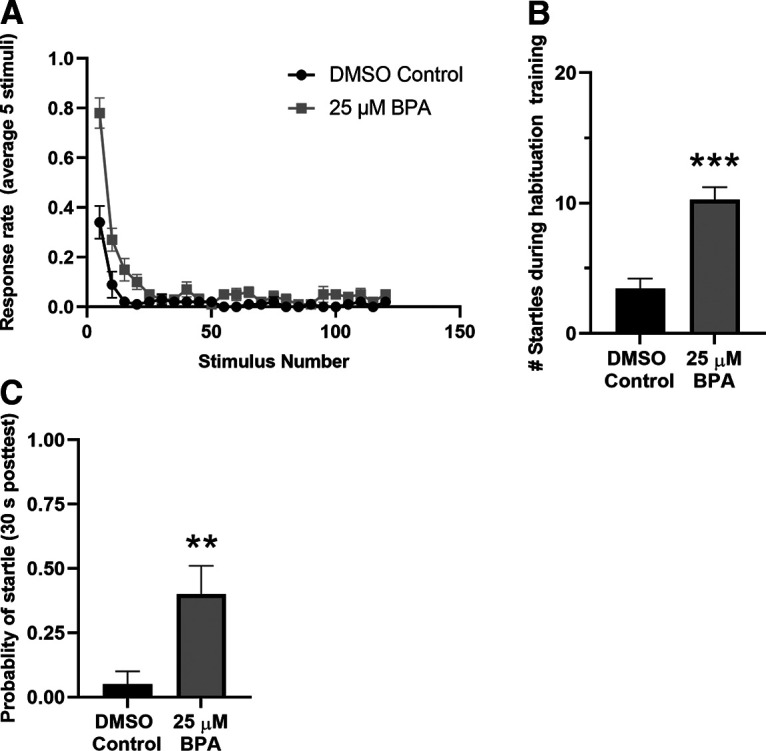

Figure 6.

BPA exposure reduces STH. A, Response rates during habituation training of BPA-exposed fish (n = 20) and DMSO-treated fish (n = 20). Data were binned as a running average of five consecutive auditory pulses. According to a two-way ANOVA, the number of responses during training and the probability of startle at 30 s posttest produced a significant interaction (F_(1,76) = 27.24; p < 0.01). B, Results of a one-way ANOVA, subsequent to the two-way ANOVA in A, comparing the number of startle responses during habituation training by the BPA-treated group to the DMSO-treated group. This analysis revealed that the BPA group habituated less than did the DMSO group (F_(1,38) = 30.58; p < 0.001). C, Results of a one-way ANOVA comparing the number of startle responses evoked on the 30 s posttest in the BPA-treated and DMSO-treated groups (F_(1,38) = 8.10; p < 0.01).

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ eNeuro
