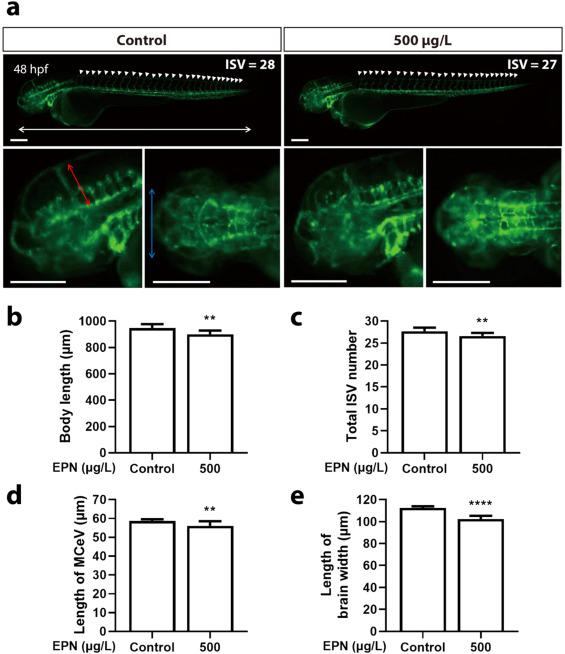

Fig. 3 Effect of EPN observed on the vascular system in transgenic zebrafish Tg(fli1a:EGFP) embryos. Vascular observations are placed in the control group and EPN-treated (500 μg/L) group at 48 hpf. The white arrowhead indicates the intersegmental vessels (ISV). The white double arrow shows the total body length. The red and blue double arrows represent the head’s middle cerebral vessel (MCeV) and the maximum width of the head’s vessels. Formation of the vascular system on 72 and 96 hpf is displayed in Fig. S3. The scale bar represents 200 µm. (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.)
