Figure 5

ID
ZDB-IMAGE-220324-44
Source
Figures for Saraswathy et al., 2022
Figure Caption

Figure 5

mib1 interacts with wnt5b to control Convergence Extension movements.

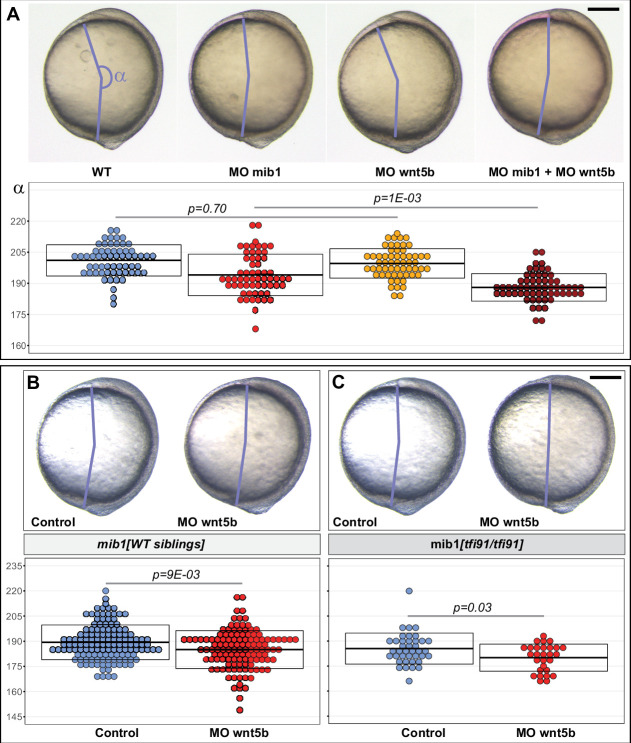

(A) Analysis of the axis extension angle α in bud stage embryos reveals that a subliminal dose of wnt5b morpholino (MO wnt5b) that has no effect on Convergent Extension (CE) in WT significantly enhances the defects observed in animals injected with mib1 morpholino (MO mib1). (B,C) wnt5b morpholino injection impairs CE in mib1tfi91 WT siblings (B) and enhances CE defects in mib1tfi91 homozygous mutants (C). (A–C) Lateral views of bud stage embryos, anterior up, dorsal to the right. Scalebars 200 µm. Boxes represent mean values ± SD. See Figure 5—source data 1 for complete statistical information.
