Figure Caption

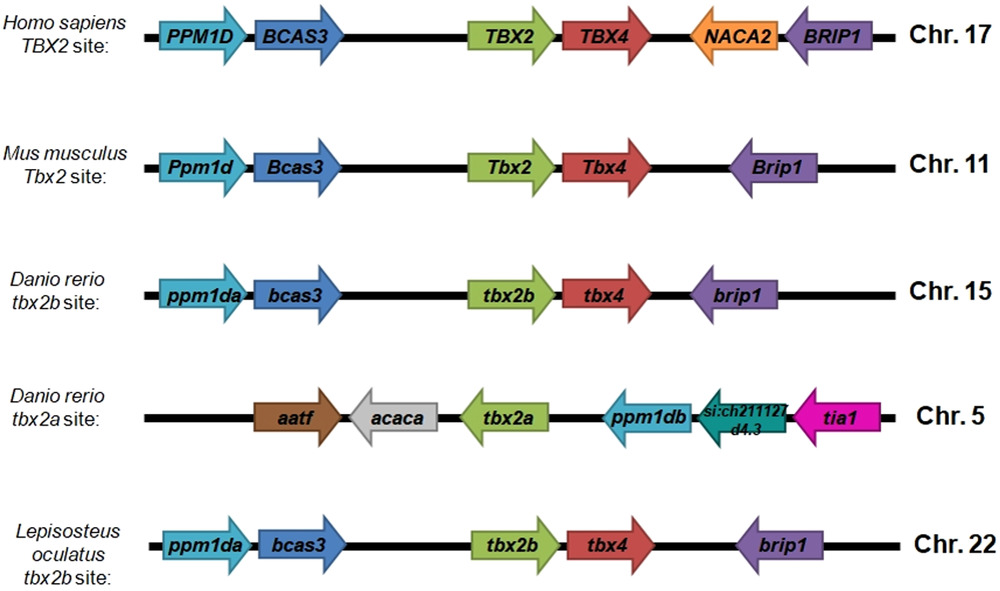

Fig. 1 Renaming of duplicated tbx2a and tbx2b genes reciprocally revealed by synteny analysis. A comparison of the tbx2 gene neighboring region in different organisms represents much higher correspondence of the zebrafish (D. rerio) tbx2b gene surroundings to other vertebrates compared with tbx2a gene surroundings. Gene naming in teleosts uses the zebrafish genome as a reference. Synteny analysis suggests a need to revise this practice by referring to the non-teleost fish genome (L. oculatus) that did not undergo teleost-specific gene duplication
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Bioessays
