Figure 1

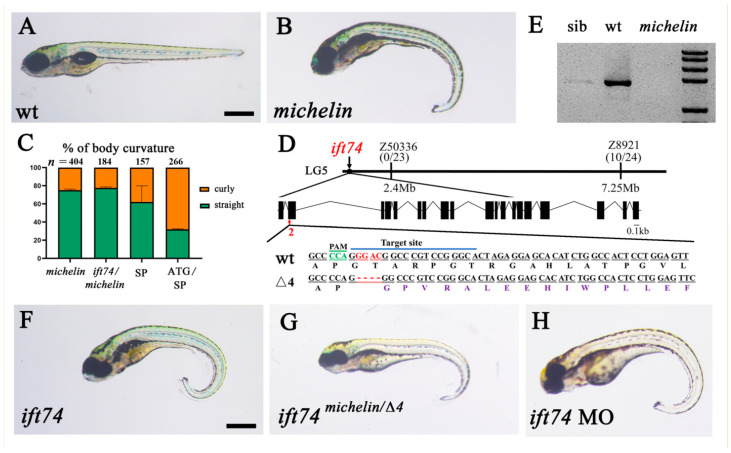

michelin encodes a zebrafish homolog of the ift74 gene. (A,B) External phenotypes of wild-type (wt) and michelin mutants at 5 dpf. (C) Bar graph showing the percentages of embryos with body curvature defects in different groups as indicated. SP, splicing morpholino; ATG, translation-blocking morpholino. (D) Genetic map on LG 5 showing the number of recombinants near michelin/ift74 locus. The exon/intron structure of the ift74 transcript was shown in the middle. Bottom showing the sequence of wild-type and ift74 mutants generated with CRISPR/Cas9 methods. The sgRNA targeting site was indicated with overline, the PAM site was labeled in green and the changing bases in the target region were shown in red. (E) PCR analysis showing the amplification of ift74 ORF in 3 dpf wild-type, sibling, and michelin mutant larvae. (FH) External phenotypes of 5 dpf ift74 mutant and morphant larvae as indicated. Scale bars: 500 µm.
