Figure 2

ID
ZDB-IMAGE-210503-103
Source
Figures for Siregar et al., 2021
Figure Caption

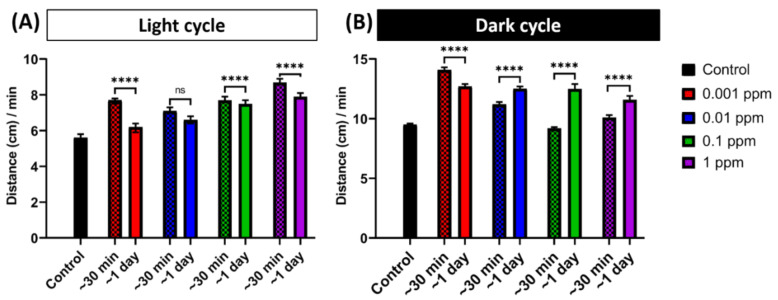

Figure 2 Comparison of short-term and long-term arecoline exposure on promoting locomotion hyperactivity. Arecoline induced a different pattern of hyperactivity behavior after short-term (30-min) and long-term (1-day) exposure in zebrafish larvae. Total average distance travelled per minute by 120 hpf zebrafish larvae during (A) light and (B) dark cycles after short-term (30-min) and long-term (1-day) arecoline exposure at different dosages were compared. The data are expressed as the median with 95% CI and significances were tested by the Mann-Whitney test. The statistical analyses were conducted between each treated group in every concentration (n = 48 for the control, 1-day exposure of 0.01 and 1 ppm, and 30-min exposure of 1 ppm arecoline groups; n = 47 for 1-day exposure of 0.001 ppm and 30-min exposure of 0.001 and 0.01 arecoline groups; n = 45 for 1-day exposure of 0.1 ppm and 30-min exposure of 0.1 ppm arecoline groups, **** p < 0.0001).

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Toxins (Basel)
