Fig. 10

ID
ZDB-IMAGE-210414-79
Source
Figures for Takahashi et al., 2020
Figure Caption

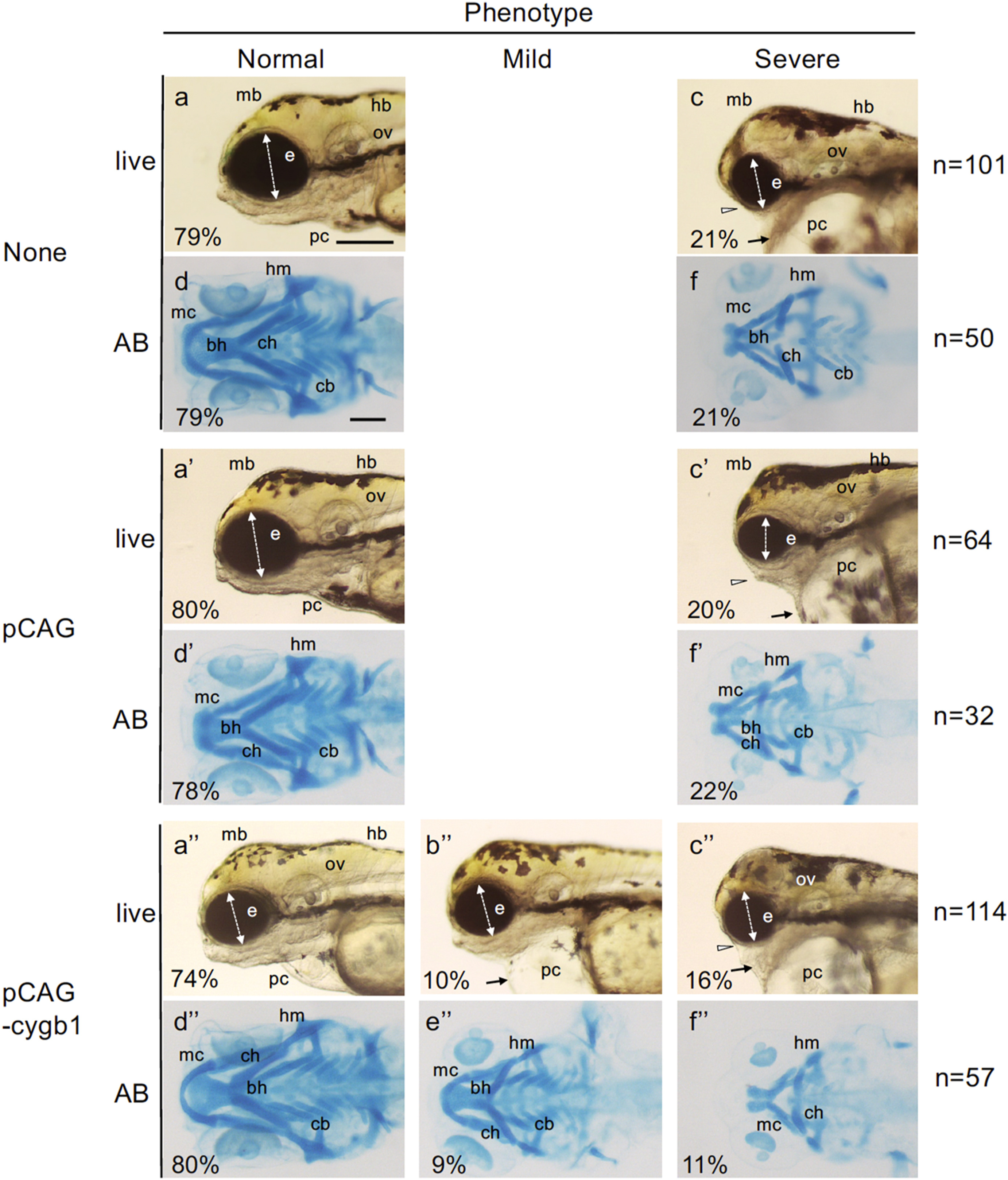

Fig. 10 kzt phenotypes are rescued by overexpression of cygb1. Offspring embryos of matings between kzt heterozygotes were raised without plasmid injection (none, a–f), or injected with either pCAG (a’–f’, 20 pg/embryo) or pCAG-cygb1 (a’’–f’’, 20 pg/embryo). Heads of live embryos (live) or those stained with Alcian blue (AB) were observed at 4 dpf, and classified as normal (Normal), kzt-type mild (Mild), or kzt-type severe (Severe) phenotypes. Percentages of the respective observed phenotypes are shown at the bottom left, and the numbers of total embryos observed are shown on the right for each experimental group. Mild phenotypes were observed only when cygb1 was overexpressed. kzt-type phenotypes are indicated with arrows (heart), arrowheads (jaws), or two-headed white arrows (eyes). These data are included in Table 2 and Supplementary Fig. S11. bh, basihyal; cb, ceratobranchial; ch, ceratohyal; e, optic vesicle; hm, hyomandibular; mb, midbrain; mc, Meckel’s cartilage; ov, otic vesicle; pc, pericardial cavity. Scale bars, 200 ​μm.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 472, Takahashi, K., Ito, Y., Yoshimura, M., Nikaido, M., Yuikawa, T., Kawamura, A., Tsuda, S., Kage, D., Yamasu, K., A globin-family protein, cytoglobin 1, is involved in the development of neural crest-derived tissues and organs in zebrafish, 1-17, Copyright (2020) with permission from Elsevier. Full text @ Dev. Biol.
