Figure 4

ID
ZDB-IMAGE-210411-13
Source
Figures for Zallocchi et al., 2021
Figure Caption

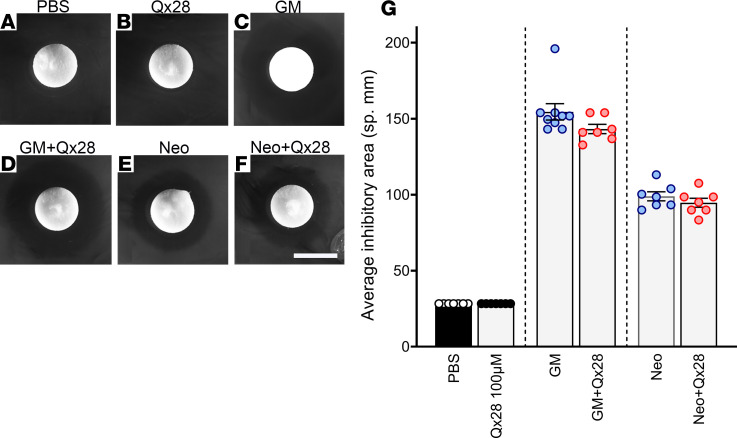

Figure 4 Antibiotic efficacy in the presence of Qx28. (A–F) There were no significant differences in the bacterial growth–inhibitory areas between aminoglycoside alone (C and E) (10 μg/mL) or Qx28 at the highest concentration (100 μM) (D and F). Filters soaked in PBS (A) or Qx28 alone (B) did not show any inhibitory properties. Quantification of the inhibitory area (G) is expressed as mean ± SEM (n = 9 for GM, n = 7 for the additional conditions). Two-tailed Student’s t test analysis between aminoglycoside alone or in combination with Qx28. Scale bar: 6 mm.
