Fig. 3

ID
ZDB-IMAGE-210408-9
Source
Figures for Zhang et al., 2021
Figure Caption

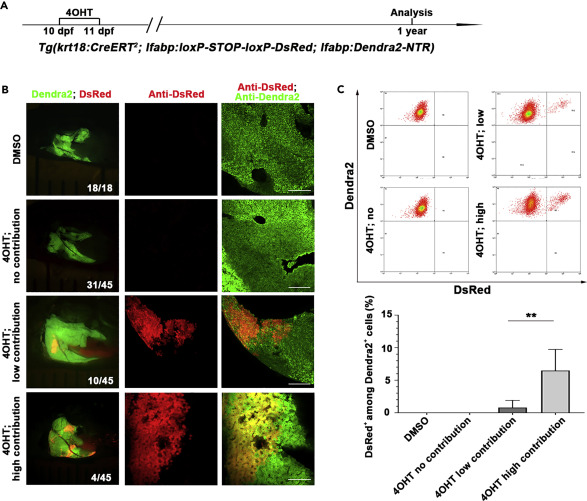

Fig. 3 Krt18-positive BECs contribute to physiological hepatocyte homeostasis in a portion of zebrafish adults (A) Experimental scheme illustrating the stage of 4OHT treatment to triple transgenic line Tg(krt18:CreERT2; lfabp:loxP-STOP-loxP-DsRed; lfabp:Dendra2-NTR) from 10 dpf to 11 dpf and analysis at 1 year. (B) Live images showing the expression of Dendra2 and DsRed in the adult livers at 1 year. Co-immunostaining for Dendra2 and DsRed in DMSO- and 4OHT-treated livers. (C) Fluorescence activating cell sorter (FACS) analysis shows the ratio of DsRed+ among Dendra+ cells in DMSO- and 4OHT-treated livers. Quantification of the percentage of DsRed+ among Dendra2+ cells in DMSO- (n=5) and 4OHT-treated (no contribution, n=5; low contribution, n=8; high contribution, n=3) livers at 1 year. Numbers indicate the proportion of larvae exhibiting the expression shown. Asterisks indicate statistical significance: ∗∗p<0.01, and p value was calculated by Student t tests. Scale bars: 100 μm. Data are represented as mean ±SEM. See also Figure S2.
