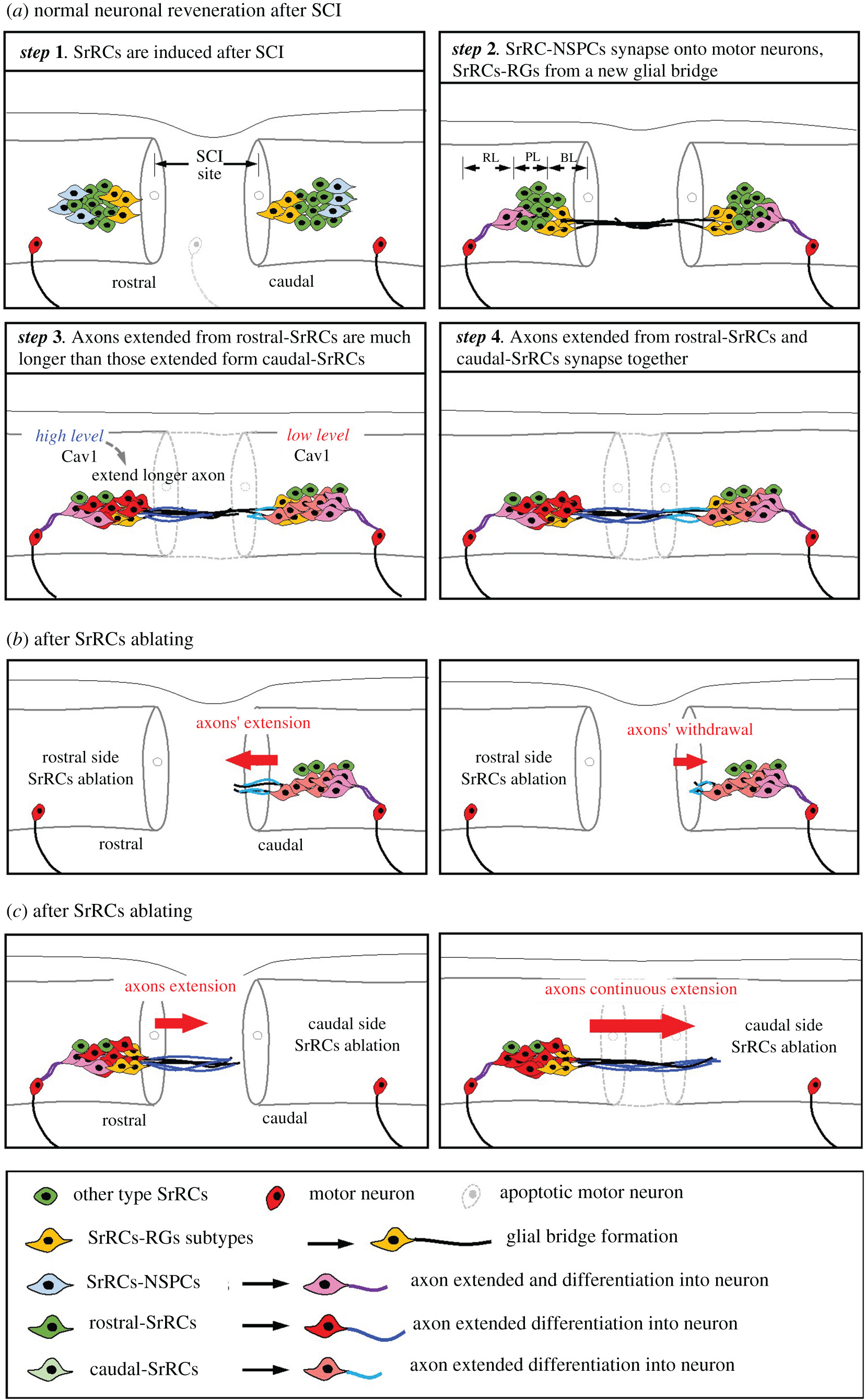

Fig. 10 Schematic illustration showing the contribution of SrRC subtypes to neuronal regeneration after SCI in zebrafish. (a) Several steps of normal neuronal regeneration. (b) Ablation of rostral-SrRCs attenuates the elongation of caudal-SrRCs axons, effectively aborting neuronal repair. (c) Ablation of caudal-SrRCs has little effect on axons derived from rostral-SrRCs, which continue to develop and perform neuronal repair.
