ZFIN Image: Jung et al., 2021, Figure 3.


Figure Caption

Figure 3.

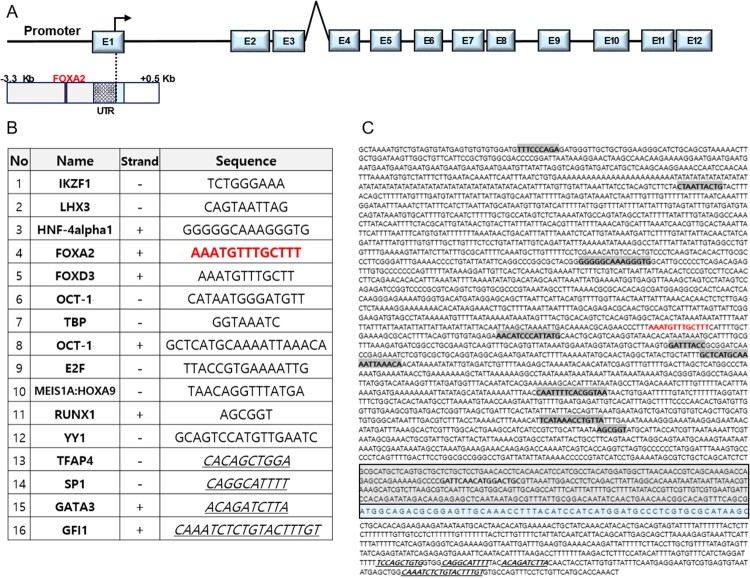

Putative cis-acting elements in the promoter region (3899 bp) of trim46a. Putative cis-acting elements defined by the Transfac database (Wingender et al. 1996). (A) Schematic representation of zebrafish trim46a genomic region. Twelve exons (E1 to E12) and eleven introns are depicted; the translation initiation site is indicated with an arrow. (B) List of the sixteen transcription factors which might bind to their corresponding response elements within the trim46a promoter (3899 bp). (C) The putative transcription factors are highlighted in bold and blue color represents exon1 (Cut-off p-value = 0).

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Animal Cells Syst (Seoul)
