Fig. 3

ID
ZDB-IMAGE-210316-35
Source
Figures for Dalgin et al., 2020
Figure Caption

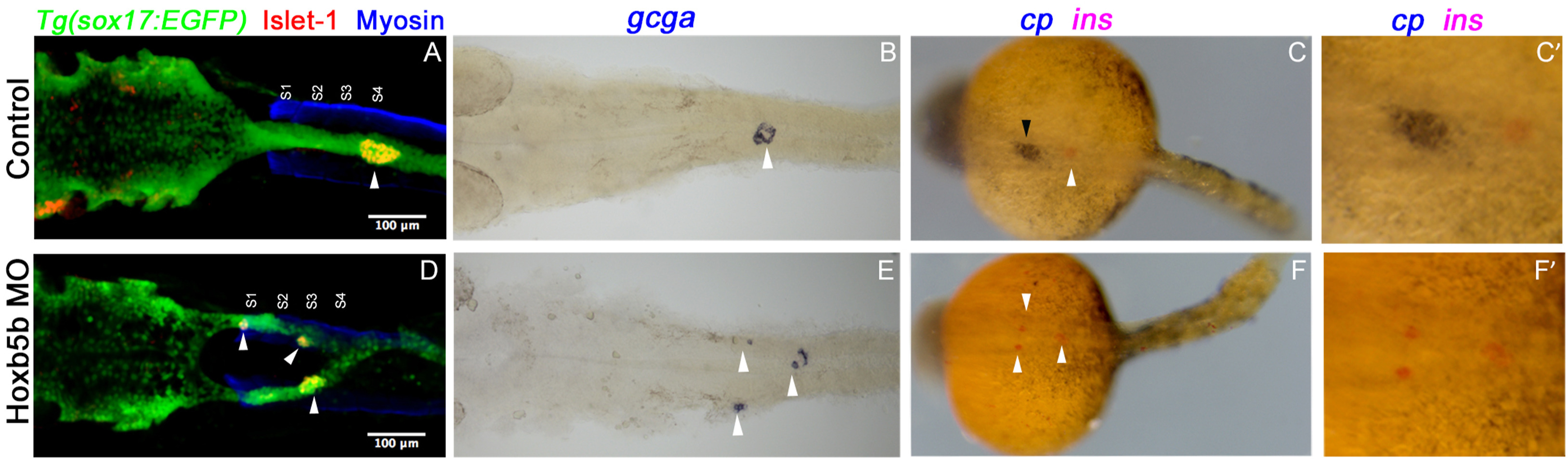

Fig. 3 Hoxb5b morphants form endocrine pancreas cell types but fail to form liver cells. (A–C) Control embryos; (D–F) Hoxb5b morphants. (A and D) Confocal images of representative 30 hpf Tg (sox17:EGFP) embryos. Whole mount immunolabeling for GFP (green), Islet1 (red) and Myosin to label somites (blue) of control and Hoxb5b morphant embryos. (B and E) In situ hybridization for glucagon (gcga, blue); (C and F) double in situ hybridization for ceruloplasmin (cp, blue) and insulin (ins, magenta) for control and Hoxb5b morphant embryos at 30 hpf. (C′ and F′) high magnification views of foregut region. Anterior to the left, pancreatic cells (white arrowhead) and liver cells (black arrowhead). Results are from 2 independent experiments with a minimum of 25 embryos per group. Scale bar ​= ​100 ​μm.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 471, Dalgin, G., Prince, V.E., Midline morphogenesis of zebrafish foregut endoderm is dependent on Hoxb5b, 1-9, Copyright (2020) with permission from Elsevier. Full text @ Dev. Biol.
