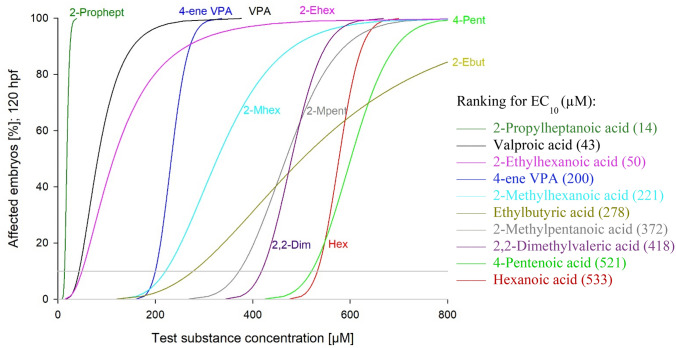

Fig. 1

Cumulated portion (% of individuals) of zebrafish (Danio rerio) embryos (n = 20–40) showing any lethal or sublethal effect after 120 h exposure to valproic acid and its nine analogues. The sequence of the chemicals represents the ranking in overall toxicity. Data in brackets: effective concentrations (µM), where 10% of the embryos show an effect (EC10)
