ZFIN Image: Reichmann et al., 2020, Fig. 4


Figure Caption

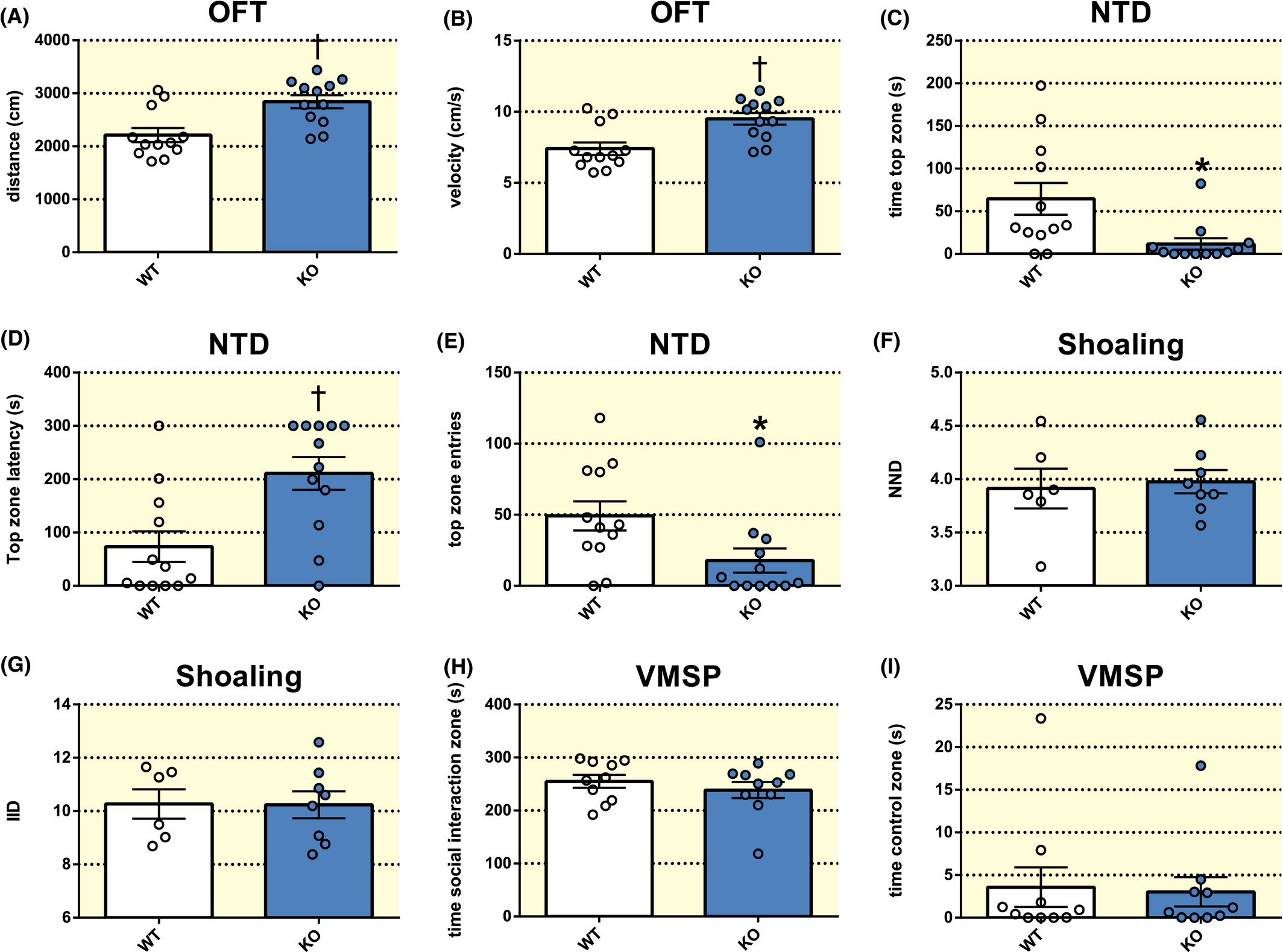

Fig. 4 Effects of histamine receptor H3 (hrh3) deletion on locomotor activity, anxiety and social behaviour. A, Total distance travelled and (B) velocity of hrh3^−/− (KO) and corresponding wild‐type fish (WT) in the open field test (OFT). n = 12/group. C, Time spent in the top zone, (D) top zone latency and (E) number of top zone entries in the novel tank diving test (NTD). n = 12/group. (F) Nearest neighbour distance (NND) and (G) inter‐individual distance (IID) in shoaling assays. n = 6‐8. H, Time spent in the social interaction zone and (I) the control zone of the visually mediated social preference test (VMSP). n = 10/group. Student's t test or Mann‐Whitney U test. ^†P < .01, *P < .05 vs WT. Data are presented as mean ± SEM

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Acta Physiol. (Oxf).
