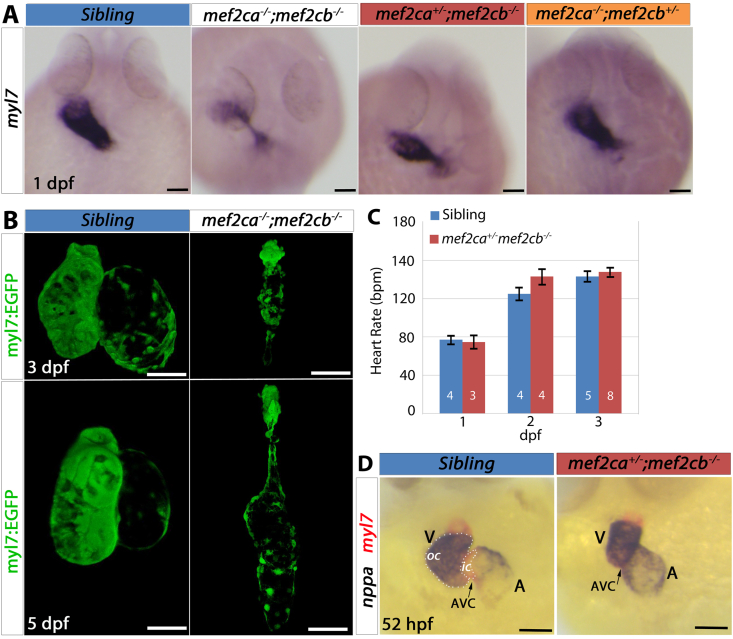

Mef2c is required for the formation of the heart. (A) In situ mRNA hybridisation for myl7 on 1 dpf embryos from an incross of mef2ca^+/⁻;mef2cb^+/⁻ in dorsal view, anterior to top, sequence genotyped retrospectively. Images are representative of the majority of embryos of each genotype. mef2ca^−/⁻;mef2cb^−/⁻ embryos had a severe reduction in myl7 expression. mef2ca^+/⁻;mef2cb^−/⁻ also showed a reduction in myl7 expression but to a lesser extent than double homozygous mutants. (B) Confocal stack of live hearts of mef2ca^−/−;mef2cb^−/− and its sibling on a Tg(myl7:EGFP) background. Double homozygous mutants continue to show a severe heart defect at 3 and 5 dpf but some growth in the differentiated structure is observed. (C) Heart rate measurements at 1–3 dpf for genotyped embryos showing no differences in heart rate of mef2ca^+/⁻;mef2cb^−/− embryos compared with their siblings (unpaired Student’s t-test, P > 0.05). Values are mean ± SEM. N for each group shown on bars. (D) Hearts of 52 hpf embryos from a cross of mef2ca^+/⁻;mef2cb^+/⁻ to mef2cb^−/− shown in ventral view after a double in situ hybridisation for nppa (blue) and myl7 (red). Sibling shown is mef2ca^+/+;mef2cb^+/⁻. Hearts of mef2ca^+/⁻;mef2cb^−/− are smaller and underdeveloped. Scale bars = 50 μm.
