Figure 2—figure supplement 3.

ID: ZDB-IMAGE-201216-14
Source: Figures for Veerapathiran et al., 2020


Figure Caption

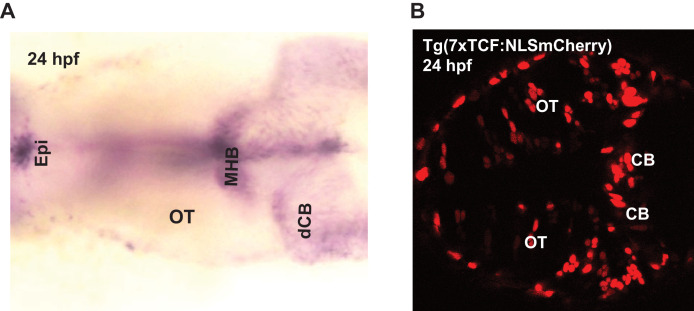

Figure 2—figure supplement 3. Expression of <italic>wnt3</italic> transcripts and downstream wnt signaling transcription factor at 24 hpf.

(A) Whole mount in situ hybridization (dorsal view) of wnt3 at 24 hpf. The expression pattern is similar to previously published results in Clements et al., 2009, Duncan et al., 2015, and Teh et al., 2015. (B) Expression of NLS-mCherry in wnt reporter line Tg(7XTcf-Xla.Siam:NLS-Cherry) at 24 hpf. dCB, cerebellum; Epi, epithalamus; FP, floor plate; MHB, midbrain–hindbrain boundary; mRP, midbrain roof plate; OT, optic tectum. Orientation: anterior to left.
