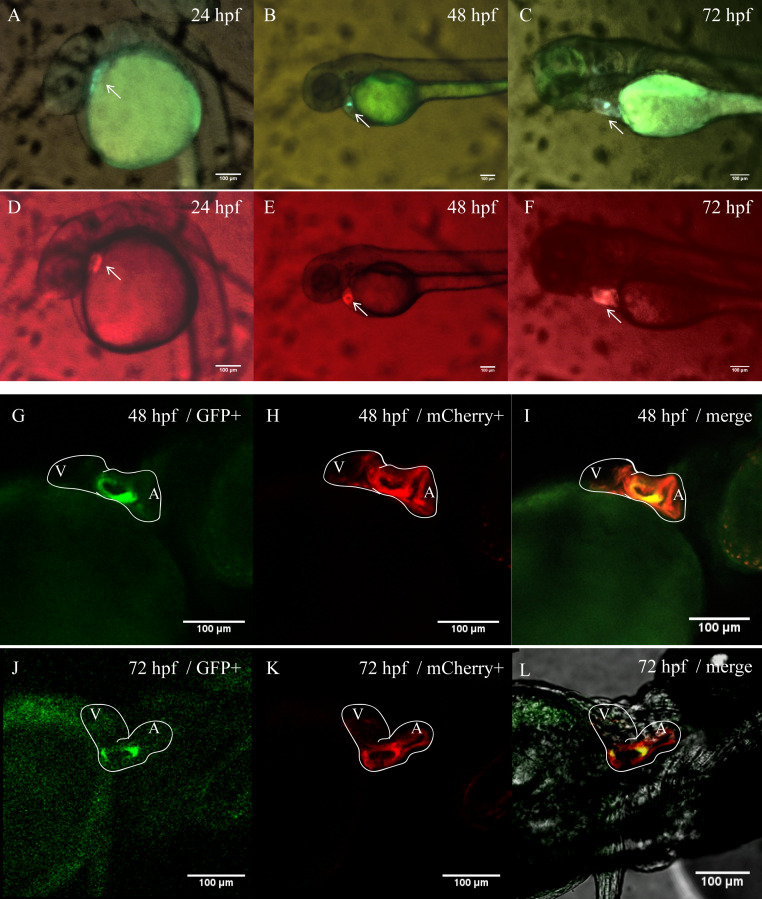

Figure 6 Heart-specific GFP expression in zebrafish embryos of <italic>Tg</italic> (tnni1b-ECR183-d2: GFP; myl7: mCherry).

(A–F) Lateral views of zebrafish embryos with GFP expression driven by tnni1b-ECR183-d2 (A–C) and those with mCherry expression driven by the promoter of myl7 (D–F). (G–L) Confocal images of ventral views of these embryos with GFP expressed in green (G, J), mCherry expressed in red (H, K) and the overlapping part expressed in yellow (I, L). White line, heart outline; A, atrium; V, ventricle. Scale bars = 100 µm.
