Figure 4

ID
ZDB-IMAGE-201121-18
Source
Figures for Zhang et al., 2020
Figure Caption

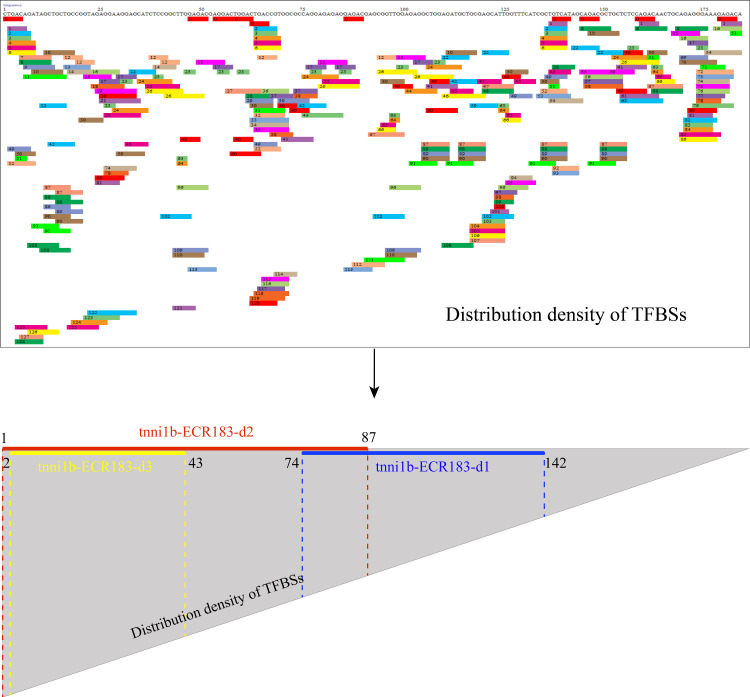

Figure 4 Putative TFBS analysis of tnni1b-ECR183 by PROMO and the specific positions of truncated enhancer fragments including tnni1b-ECR183-d1, tnni1b-ECR183-d2, and tnni1b-ECR183-d3.

TFBSs are displayed in fragments of different colors and numbers. The area division of the triangle represents the distribution density of TFBSs.
