Figure Caption

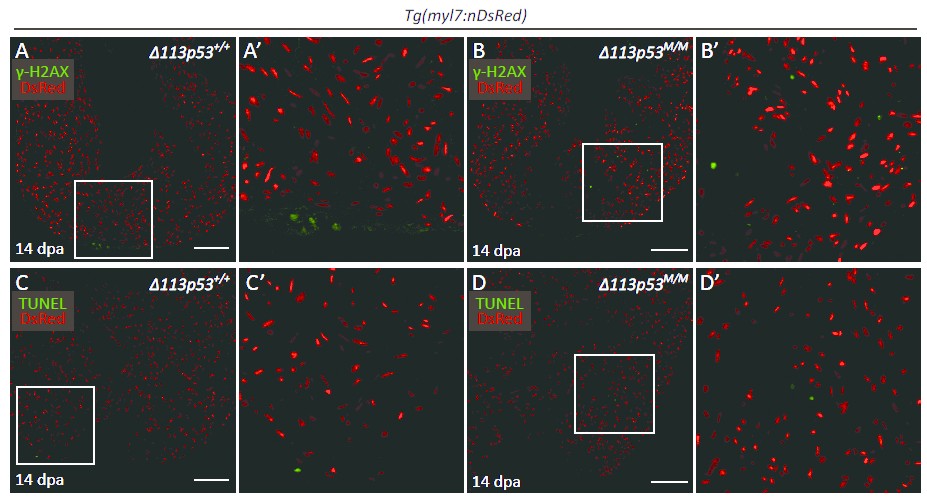

Fig. S6

Depletion of Δ113p53 has little effects on DNA damage response and apoptotic activity during heart regeneration. (A-B) Cryosections of Tg(myl7:nDsRed); Δ113p53^+/+ (A) and Tg(myl7:nDsRed); Δ113p53^M/M(B) hearts at 14 dpa were co-stained by anti-DsRed (in red) and anti-γ-H2AX (in green) antibodies. Framed areas were magnified in A’ and B’. (C-D) TUNEL assay (in green) and co-immunostaining with anti-DsRed antibody (in red) were performed on cryosections of Tg(myl7:nDsRed);Δ113p53^+/+ (C) and Tg(myl7:nDsRed); Δ113p53^M/M (D) hearts at 14 dpa. Framed areas were magnified in C’ and D’. The representative picture was taken from 6 hearts in each group. Scale bar, 50 μm.
