Figure 1—figure supplement 2.

ID
ZDB-IMAGE-200530-38
Source
Figures for Ye et al., 2020
Figure Caption

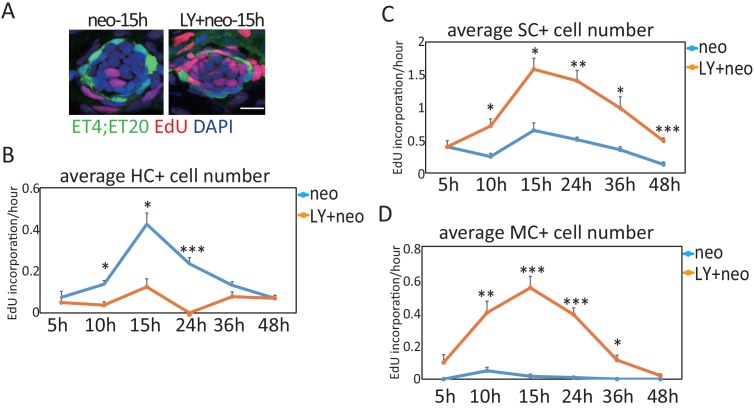

Figure 1—figure supplement 2. More proliferative SCs and MCs were induced post severe injury compared with normal injury.

Larvae treated with neo or LY+neo were incorporated with EdU for different time points and counted for numbers of differentiating cells (EdU+ET4+ cells, HC+), proliferative SCs (EdU+ET4-ET20- cells, SC+), and proliferative MCs (EdU+ET20+ cells, MC+). We calculated EdU incorporation per hour by dividing EdU+ cell number with incorporation time. Results showed that differentiation rate (HC+ in B) in LY+neo was decreased compared with neo, while proliferative rates of SCs (SC+ in C) and MCs (MC+ in D) were significantly increased. Scale bar equals 10 μm.
