Fig. 2

ID
ZDB-IMAGE-200406-17
Source
Figures for Zhang et al., 2020
Figure Caption

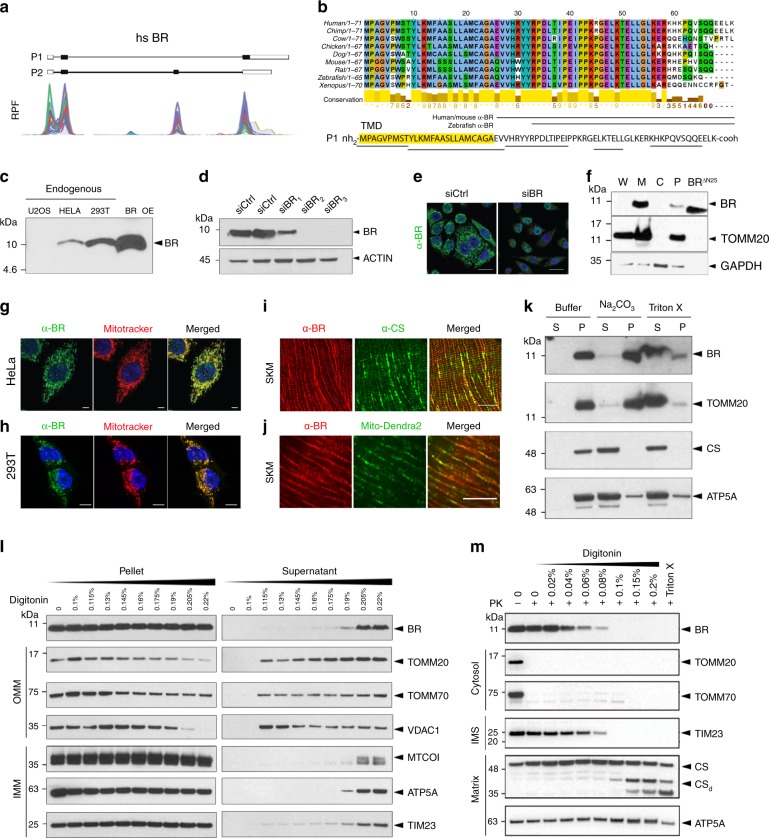

Fig. 2 BRAWNIN (BR) is a conserved SEP at the inner mitochondrial membrane.

a Ribosome protected fragment (RPF) reads from the BRAWNIN gene (C12orf73) in human cell lines. P1 and P2 refer to the 2 potential ORF isoforms generated by alternative splicing. b BR (P1) peptide is conserved throughout vertebrate evolution and possesses an N-terminal hydrophobic region that is predicted to be a transmembrane domain or signal peptide. Underlined regions are peptides detected by mass spec. Regions used as immunogens for raising the polyclonal antibodies used in this study are indicated. c Endogenous BR is detected in HeLa and HEK293T with an α-BR antibody. OE = overexpression. d Western blot of HEK293T lysates transfected with control or BR-targeting siRNAs. e Immunofluorescence of endogenous BR detected by α-BR in HeLa transfected with control or BR-targeting siRNAs. Scale = 5 μM. f Western blot of indicated proteins from subcellular fractions of HEK293T. W = whole cell, M = mitochondria enriched fraction, C = cytosol, P = nuclear fraction and debris, including un-extracted mitochondria; BR∆N25 = synthetic BR peptide lacking the N-terminal 25 a.a. g Endogenous BR detected by α-BR in HeLa costained with mitotracker. Scale = 5 μM. h Endogenous BR detected by α-BR in HEK293T costained with mitotracker. Scale = 5 μM. i α-BR and α-citrate synthase (CS) immunofluorescence in mouse skeletal muscle, longitudinal section. Scale = 20 μM. j α-BR immunofluorescence and GFP epifluorescence of Mito-Dendra2 in mouse skeletal muscle, longitudinal section. Scale = 20 μM. k Extraction of endogenous BR from HEK293T mitochondria with buffer alone, Na2CO3 solution or buffer containing 1% Triton X. S = supernatant; P = pellet. l Extraction of endogenous BR from HEK293T mitochondria using increasing concentrations of digitonin. TOMM20, TOMM70, and VDAC1 are outer mitochondrial membrane (OMM) proteins, are MTCO1, ATP5A, and TIM23 are IMM associated. m Proteinase K protection assay of HEK293T mitochondria. The α-BR epitope is C-terminal to the predicted transmembrane domain. TOMM20 and TOMM70 have cytosolic domains. TIM23 has IMS domains. Both CS and ATP5A are in the matrix.
