Figure 2

ID
ZDB-IMAGE-191230-778
Source
Figures for Xie et al., 2019
Figure Caption

Figure 2

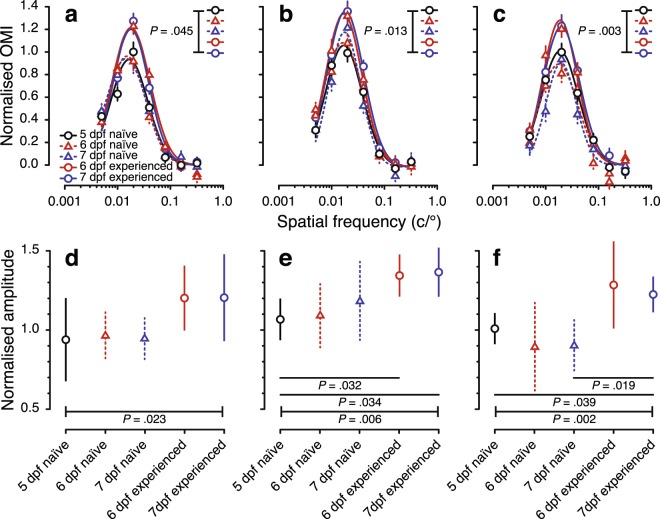

Spatial-frequency tuning from the optomotor response of visually naïve and experienced larval zebrafish from 5 to 7 dpf. The top row shows spatial-frequency tuning functions (mean ± SEM) at stimulus speeds of (a) 25 °/s (b), 50 °/s, and (c) 100 °/s. Black solid, red dashed and blue dashed lines show tuning functions for visually naïve 5, 6 and 7 dpf larvae, respectively. Red and blue solid lines show spatial-frequency tuning functions for visually experienced 6 and 7 dpf larvae, respectively. Functions are a three-parameter log-Gaussian, fit by minimising the least-squares error. The bottom row shows normalised amplitude at stimulus speeds of (d) 25 °/s (e), 50 °/s, and (f) 100 °/s. Error bars show the 95% confidence intervals. P < 0.05 after Bonferroni correction was considered to be statistically significant.
