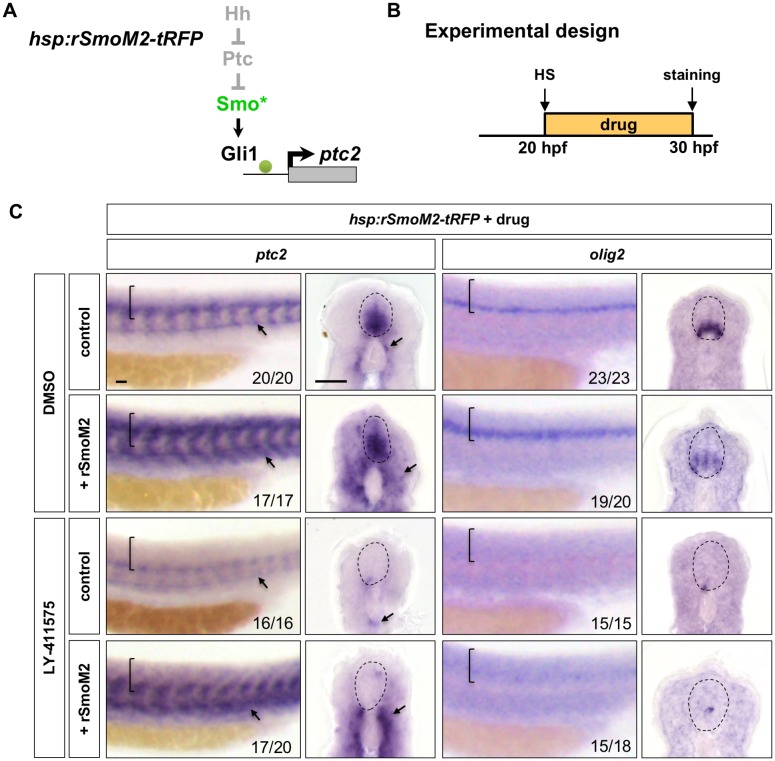

Figure 6. Activation of Hh signalling by rSmoM2 cannot rescue Notch<sup>off</sup> spinal cords.

(A) Schematic representation of the manipulation to the Hh pathway caused by ectopic expression of rSmoM2-tRFP. The point of manipulation is highlighted in green with an asterisk. (B) Experimental design in C. (C) hsp:rSmoM2-tRFP or wild-type control embryos were heat shocked at 20 hpf, and then incubated in either DMSO or LY-411575 until fixation at 30 hpf. Whole mount in situ hybridisation was performed for ptc2 and olig2. Brackets in lateral views and dotted lines in transverse views denote the extent of the spinal cord. Arrows indicate ptc2 expression in somites. The n number for each staining is shown. Scale bars: 20 μm.
