Fig. 7

ID
ZDB-IMAGE-191003-7
Source
Figures for Vázquez-Marín et al., 2019
Figure Caption

Fig. 7

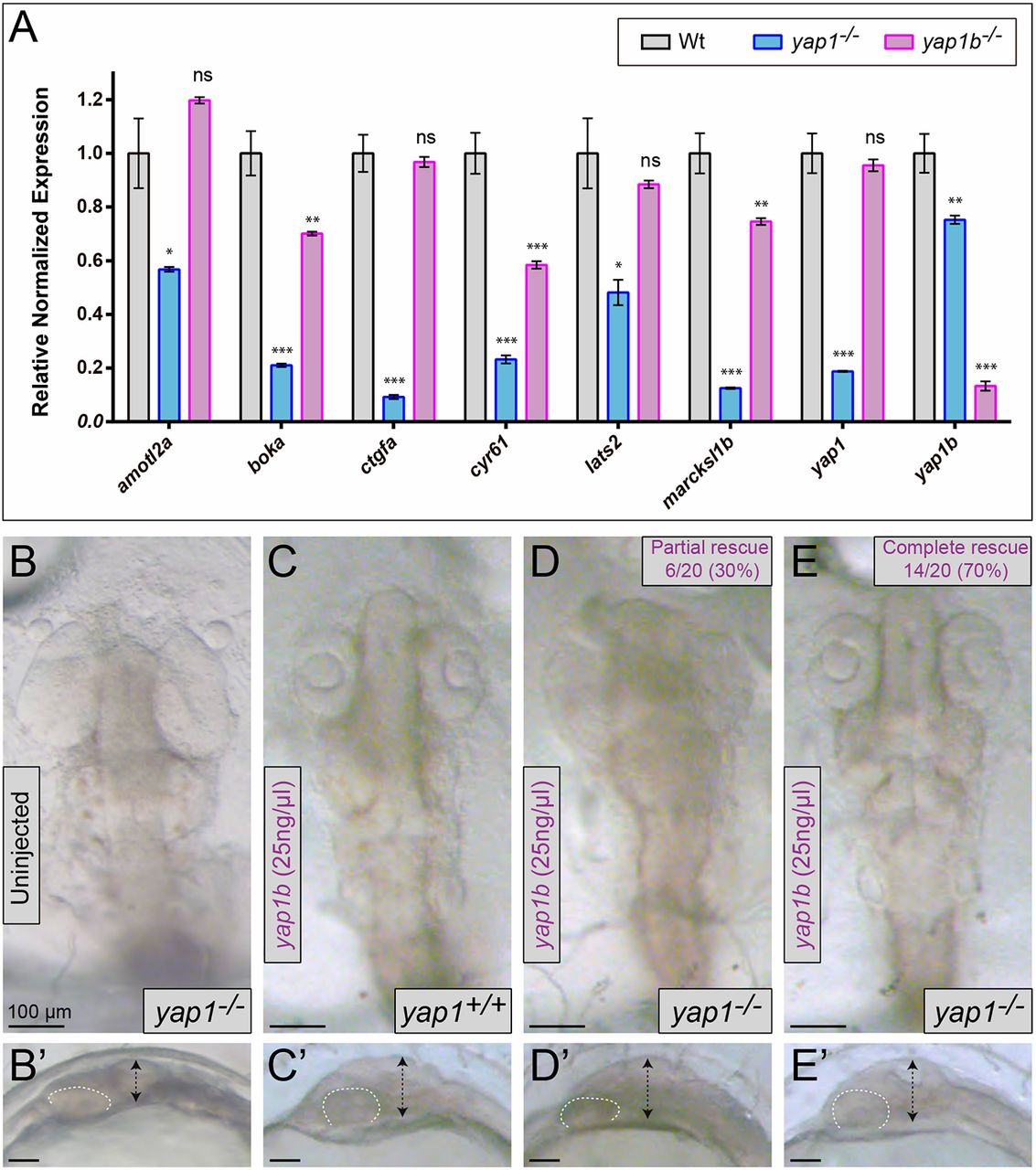

yap1/yap1b relative regulatory weight and yap1b rescuing capacity. (A) Quantification of the expression levels of genes targeted by Yap family proteins in wild-type, yap1−/− and yap1b−/−medaka embryos (stage 16) by qPCR (n=3). Comparative dorsal (B-E) and lateral (B′-E′) views of stage 24 medaka embryos in yap1b rescuing experiments. Embryo genotype (either yap1+/+ or yap1−/−) and yap1b injections are indicated. Embryo flattening (double-headed arrows) and optic cup shape (dotted lines) are also highlighted. The complete yap1−/− phenotypic rescue upon yap1b mRNA injection (E). One-way ANOVA analysis followed by Fisher's LSD test was used to evaluate statistical significance. ***P<0.001; **P<0.01; *P<0.05; ns, not significant.
