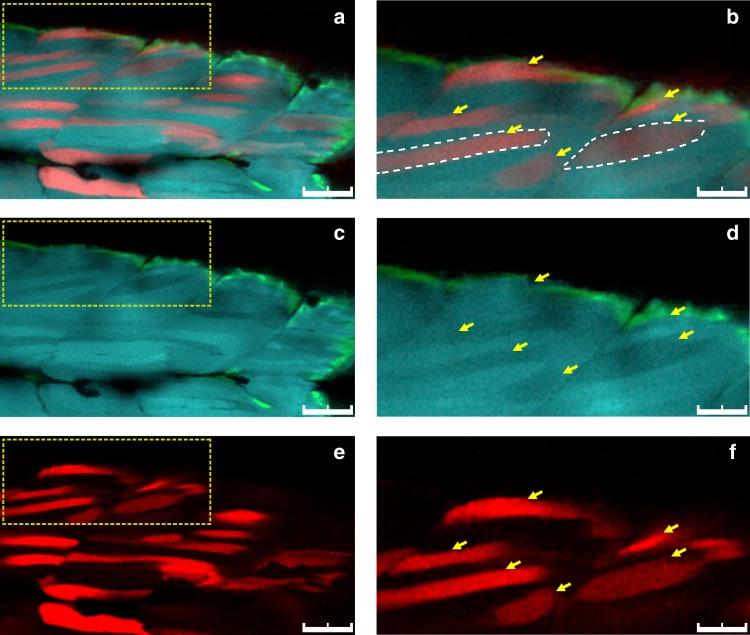

Single fiber analysis of homology-directed repair (HDR) events. Cross-sectional in vivo imaging of a zebrafish embryo (3 dpf) co-injected with NU7441 at 50 µM and RS-1 at 30 µM. a Merged image showing mutually exclusive expression of eBFP2 and tdTomato in individual fast-muscle fibers (yellow arrows). c, e Individual channels showing eBFP2 expression (c) and tdTomato (e). Adjacent slow-muscle fibers express eGFP. b, d, f Higher magnification confocal sections of regions indicated in a, c, e. Scale bars: 50 µm
