Figure 6

ID
ZDB-IMAGE-190723-1478
Genes
Source
Figures for Chrispijn et al., 2019
Figure Caption

Figure 6

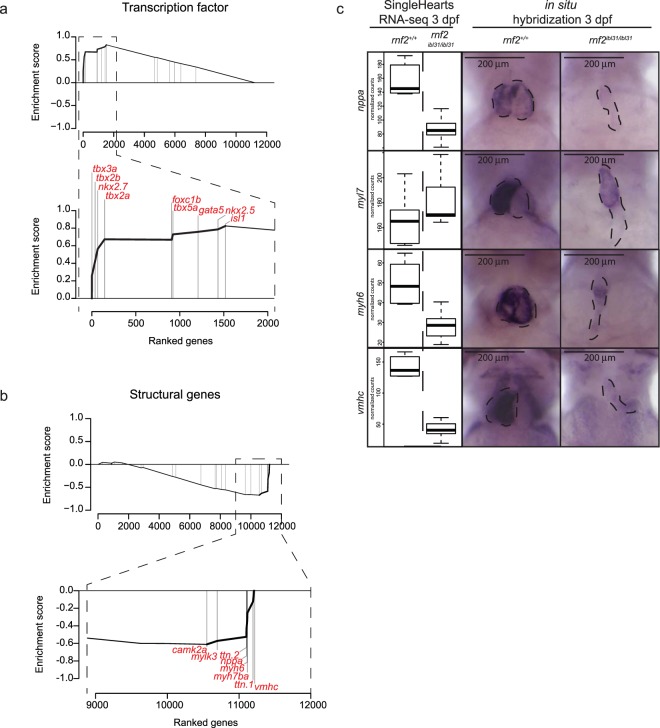

Cardiac chamber identity is disrupted in rnf2 mutants at 3 dpf. (a) GSEA using the list of cardiac genes reported by Hill et al.38 indicates that the group of transcription factors is significantly enriched in being upregulated in rnf2 mutant hearts at 3 dpf as detected by Single HeartsRNA-seq (FDR q-value = 0.001; NES = 1.96). The leading transcription factors (n = 9) are listed in the zoom of the GSEA plot. (b) GSEA indicates the annotation ‘Structural Group’ genes (n = 23) to be enriched for downregulation upon the rnf2 mutation in hearts at 3 dpf. The leading genes (n = 8) are listed in the zoom of the GSEA plot. FDR q-value = 0.054; NES = −1.67. (c) Normalized counts as found by Single HeartsRNA-seq for nppa, myl7, myh6, and vmhc at 3 dpf in wildtype and rnf2 mutant hearts with their accompanying whole mount in situ hybridizations. Scale bar is 200 µm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Sci. Rep.
