Figure Caption

Fig. S3

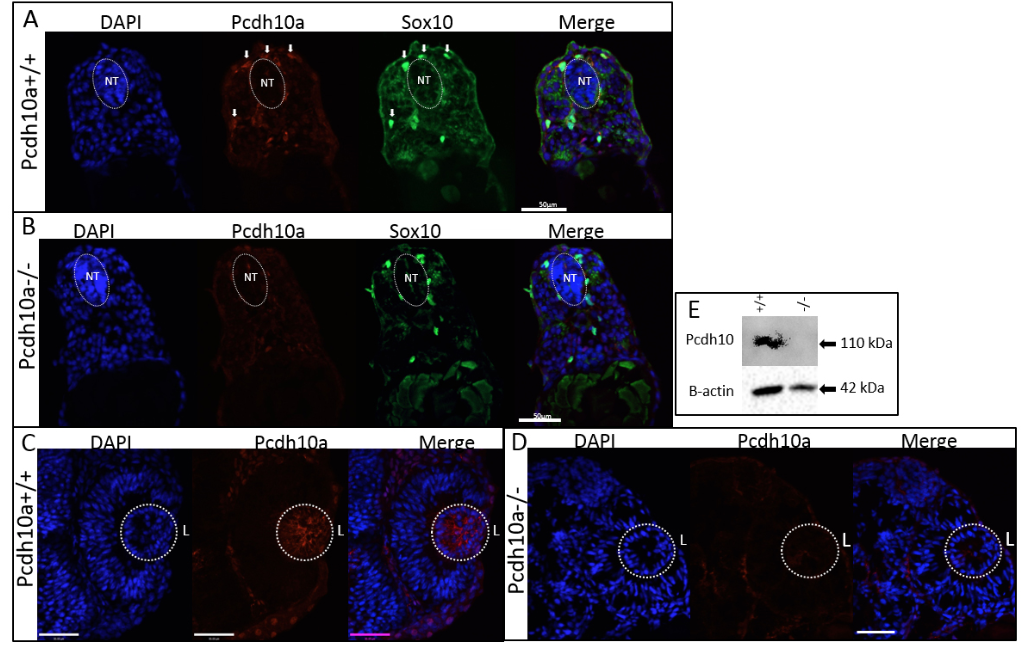

pcdh10aCO1000 mutant does not make functional Pcdh10a protein.
(A-D) Pcdh10 Immunofluorescence on 12μm cross sections. Images are single 1μm Z-planes. (A, B) Sections through the embryo trunk comparing staining in wildtype (A) and pcdh10a-/- mutants (B). (C,D) Sections through the embryo eye comparing staining in wildtype (C) and pcdh10a-/- mutants (D). Western blot for Pcdh10a of pooled embryos comparing wildtype to pcdh10a-/- mutant (E).  NT; Neural Tube, L; Lens. Scale bars are 50μm

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 444 Suppl 1, Williams, J.S., Hsu, J.Y., Rossi, C.C., Artinger, K.B., Requirement of zebrafish pcdh10a and pcdh10b in melanocyte precursor migration, S274-S286, Copyright (2018) with permission from Elsevier. Full text @ Dev. Biol.
