Figure Caption

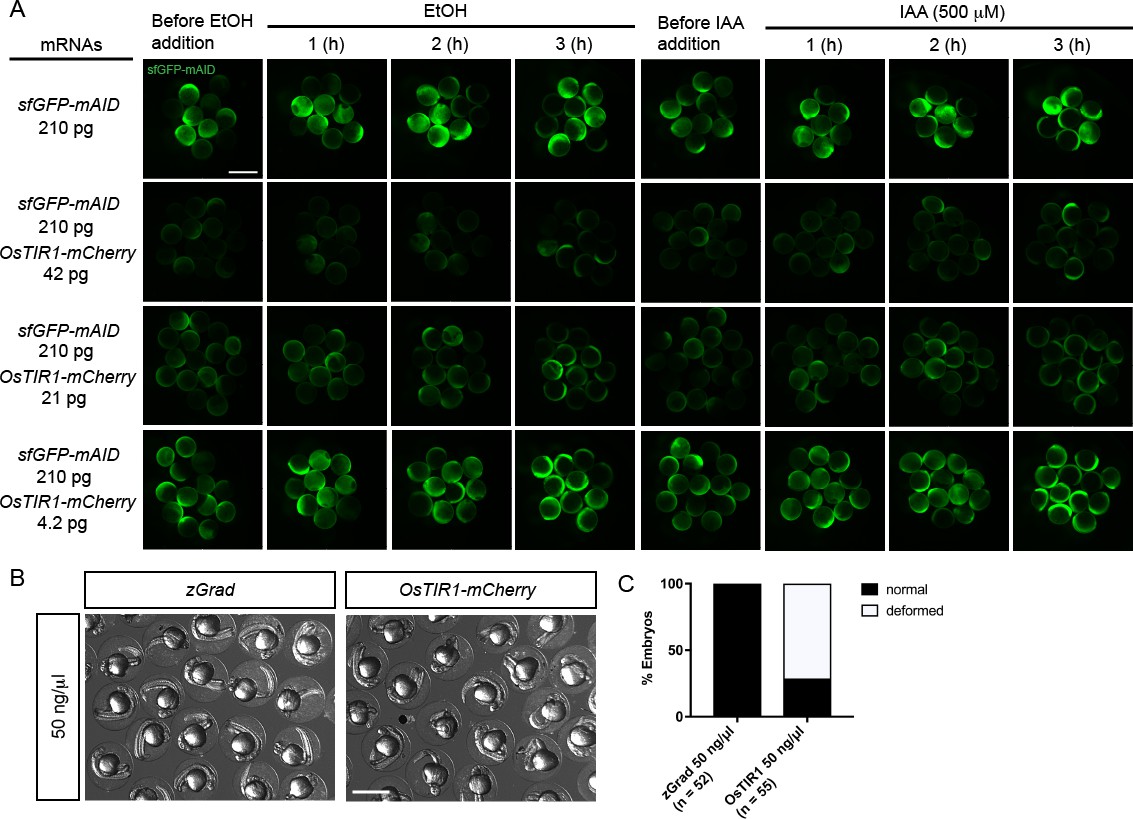

Fig. 1-S1
Characterization of the AID system in zebrafish.
(A) Images of embryos injected with sfGFP-mAID mRNA and different amounts of OsTIR1-mCherrymRNA and incubated with 0.2%EtOH (left) or the auxin IAA 500 µM (right) over a 3 hr time course. Scale bar: 1 mm. (B) Images of embryos injected with zGrad mRNA and OsTIR1-mCherry mRNA at 24 hpf. Scale bar: 1 mm. (C) Percentage of deformed embryos among embryos injected with zGrad mRNA and OsTIR1-mCherry mRNA at 24 hpf.
