Figures for Blanco-Sánchez et al., 2018

Figure Caption/Comments:

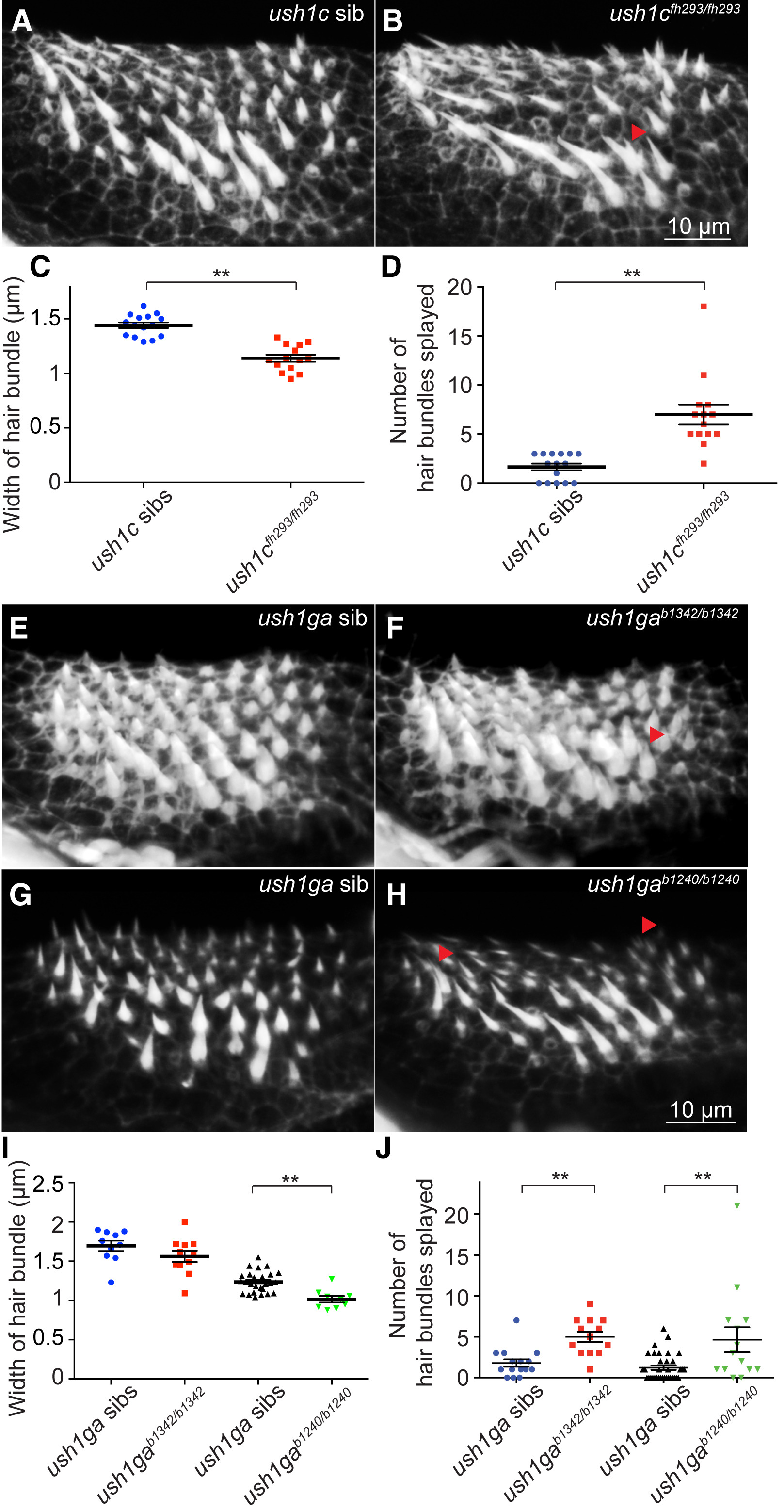

Fig. 3

ush1c−/− and ush1ga−/− Mutants Have Dysmorphic Hair Bundles

(A and B) Phalloidin staining of the anterior macula in ush1c siblings (A) and ush1cfh293/fh293 mutant larvae (B). The red arrowhead points to splayed hair bundles.

(C) Average width of hair bundles at half their height in ush1cfh293 siblings (n = 15 larvae) and ush1cfh293/fh293 (n = 14 larvae).

(D) Number of hair bundles splayed in ush1cfh293 siblings (n = 15 larvae) and ush1cfh293/fh293 (n = 14 larvae).

(E–H) Phalloidin staining of the anterior macula at in ush1ga siblings (E and G), ush1gab1342/b1342 (F), and ush1gab1240/b1240 mutant larvae (H).

(I) Average hair bundle width at half their height in ush1gab1342 siblings (n = 10 larvae), ush1gab1342/b1342 (n = 11 larvae), ush1gab1240 siblings (n = 28 larvae), and ush1gab1240/b1240 mutant larvae (n = 9 larvae).

(J) Number of hair bundles splayed in ush1gab1342 siblings (n = 15 larvae), ush1gab1342/b1342 (n = 13 larvae), ush1gab1240 siblings (n = 35 larvae), and ush1gab1240/b1240 mutant larvae (n = 14 larvae).

Data are represented as mean ± SEM. ∗∗p < 0.01; 5 dpf.
