Fig. 8

ID
ZDB-IMAGE-181001-10
Source
Figures for LaFlamme et al., 2018
Figure Caption

Fig. 8

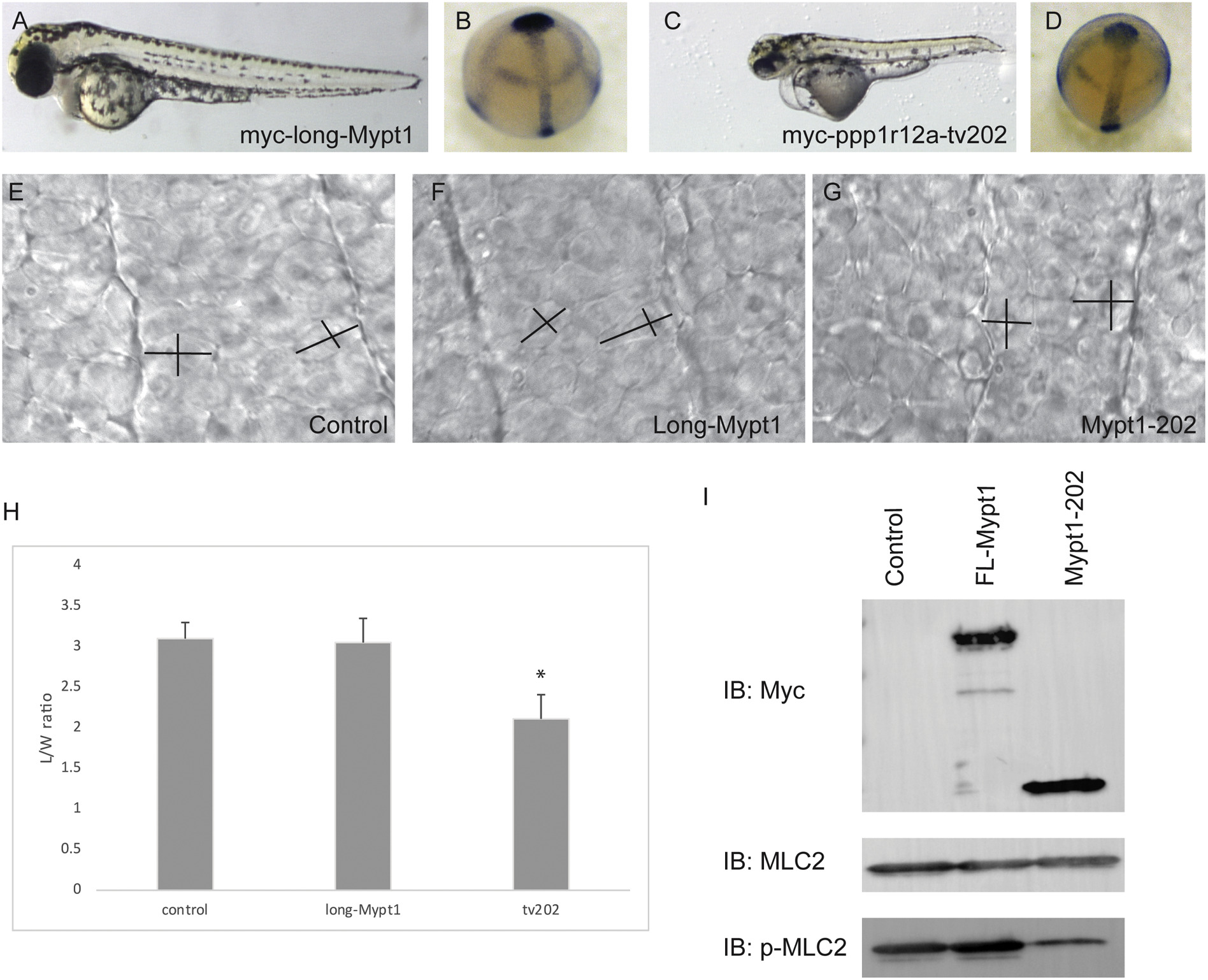

Overexpression of Mypt1-202 in zebrafish embryos results in constitutive dephosphorylation of Mlc2. Lateral views of representative 48 hpf zebrafish embryos injected with (A) 200 pg myc-long-mypt1 mRNA or (C) 100 pg myc-ppp1r12a-tv202 mRNA. Embryos at bud stage stained with hgg1 (to mark the prechordal plate), shh (midline), pax2.1 (midbrain-hindbrain boundary) and dlx3 (neural plate) after injection of (B) 200 pg myc-long-mypt1 mRNA or (D) 100 pg myc-ppp1r12a-tv202 mRNA. A representative field of presomitic and notochordal mesoderm at the bud stage in control embryos (E), embryos injected with 200 pg myc-long-mypt1 mRNA (F) or 100 pg ppp1r12a-tv202 mRNA (G). (H) The actomyosin driven elongation of mesodermal cells was determined by calculating the length width ratio (y-axis). The crossed bars indicate cells with the long axis length and the short axis width. Error bars are standard error and a * indicates a statistically significant difference from control. All calculations were made on 75 cells from 3 to 5 separate embryos. Statistical significance was calculated using a one-factor ANOVA with Tukey post hoc analysis and is defined as p < 0.05. (I) Embryo lysates from 25 control embryos or 25 embryos injected with either myc-long-mypt1 mRNA or myc-ppp1r12a-tv202 mRNA were analyzed by Western blot using anti-myc, anti-phospho-Mlc2 or anti-Mlc2 antibodies. This biochemical analysis was performed four times.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene, 675, LaFlamme, A., Young, K.E., Lang, I., Weiser, D.C., Alternative splicing of (ppp1r12a/mypt1) in zebrafish produces a novel myosin phosphatase targeting subunit, 15-26, Copyright (2018) with permission from Elsevier. Full text @ Gene
