Thalamic expression in Gal4^s1020t.

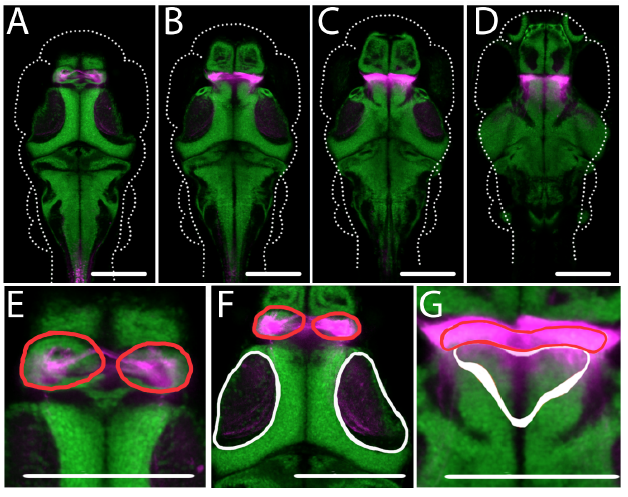

Expression of Kaede (magenta), averaged across five animals of the genotype Gal4^s1020t; UAS:Kaede, is registered against cell nuclei (green) from the Zbrain atlas (Randlett, Wee et al. 2015). (A-D) show horizontal optical sections through the brain at four dorsal to ventral positions, and selected close-ups are shown in (E-G). Gal4 expression is notable in the habenulae ((A) and (B), red outlines in (E) and (F)), the tectal neuropil ((B), white outline in (F)), sparsely in the dorsal thalamus ((C), white outline in (G)), and the ventral thalamus ((C) and (D), red outlines in (G)). All outlines are derived from the Zbrain atlas (Randlett et al., 2015). Scale bars indicate 100μm.
