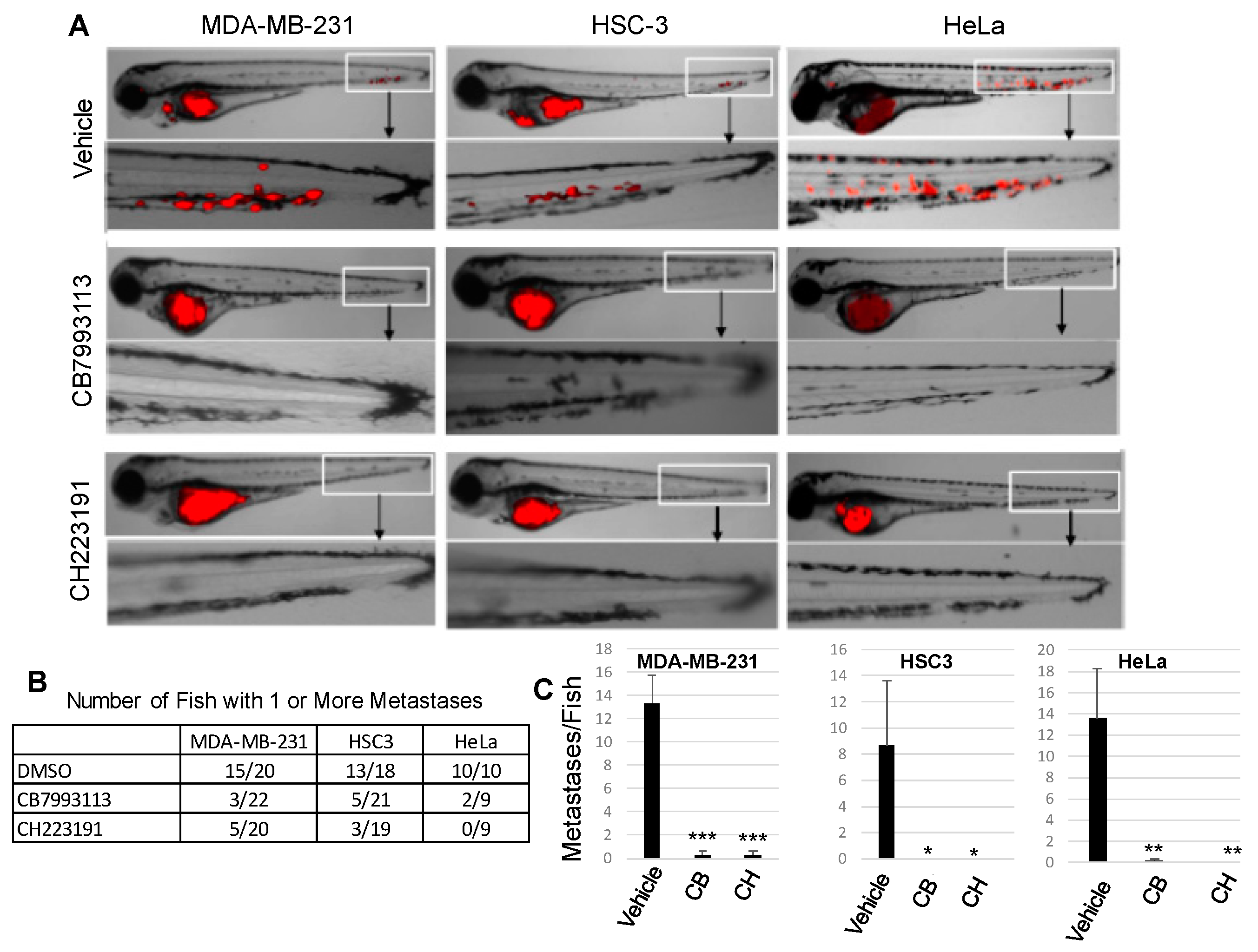

Fig. 4
AHR inhibitors block human cancer cell metastasis in zebrafish xenograft models. Human RFP-MDA-MB-231 (TNBC), RFP-HSC3 (oral squamous cell carcinoma), or RFP-HeLa (cervical carcinoma) cells were injected into the perivitiline space of two-day-old zebrafish larvae and larvae were treated with vehicle (0.1% DMSO), 10 μM CB7993113 or 10 μM CH223191. Fish were imaged 24 h later at 8.5× magnification by confocal microscopy. (A) Representative images from 9–20 fish/group. (B) The number of fish with one or more metastases. (C) Data are presented as the average number of metastases/fish + SE after treatment with vehicle, CB7993113 (CB) or CH223191 (CH). * p = 0.08, ** p < 0.02, *** p < 0.003.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Int. J. Mol. Sci.
