Fig. 1

ID
ZDB-IMAGE-180403-18
Source
Figures for Roh-Johnson et al., 2017
Figure Caption

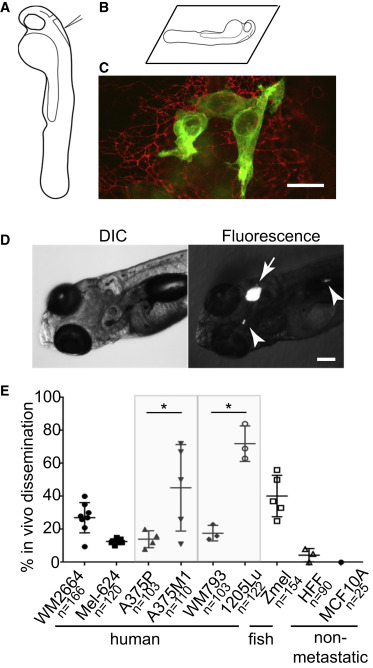

Fig. 1 Human Melanoma Cells Disseminate from the Site of Transplantation (A and B) Schematic of zebrafish hindbrain ventricle transplantation and imaging strategy. (C) Confocal z projection of fixed larvae in which melanoma cells (GFP immunostaining, green) are dorsal to the choroid plexus, within the skin (ZO-1 immunostaining, red). Scale bar, 20 μm. See also Figure S1 and Movie S1. (D) Left: DIC image of anterior region of 6dpf zebrafish larva on left. Right: fluorescence image of same larva showing transplanted tumor (arrow) and disseminated cells (arrowheads). Scale bar, 100 μm. (E) Quantification of tumor cell dissemination in vivo in which each point is a single experiment comprising of 20–40 larvae. n indicates total number of zebrafish scored. Gray boxes indicate matched pairs of primary tumor-derived cell lines (A375P and WM793), and cell lines derived from metastases of those parental tumors (A375M1 and 1205Lu). Error bars are mean ± SD. One-way ANOVA (p < 0.0001), followed by non-parametric unpaired t test (p = 0.05 [between A375P and A375M1], p = 0.01 [between WM793 and 1205Lu]). Asterisks indicate p < 0.05.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 43, Roh-Johnson, M., Shah, A.N., Stonick, J.A., Poudel, K.R., Kargl, J., Yang, G.H., di Martino, J., Hernandez, R.E., Gast, C.E., Zarour, L.R., Antoku, S., Houghton, A.M., Bravo-Cordero, J.J., Wong, M.H., Condeelis, J., Moens, C.B., Macrophage-Dependent Cytoplasmic Transfer during Melanoma Invasion In Vivo, 549-562.e6, Copyright (2017) with permission from Elsevier. Full text @ Dev. Cell
